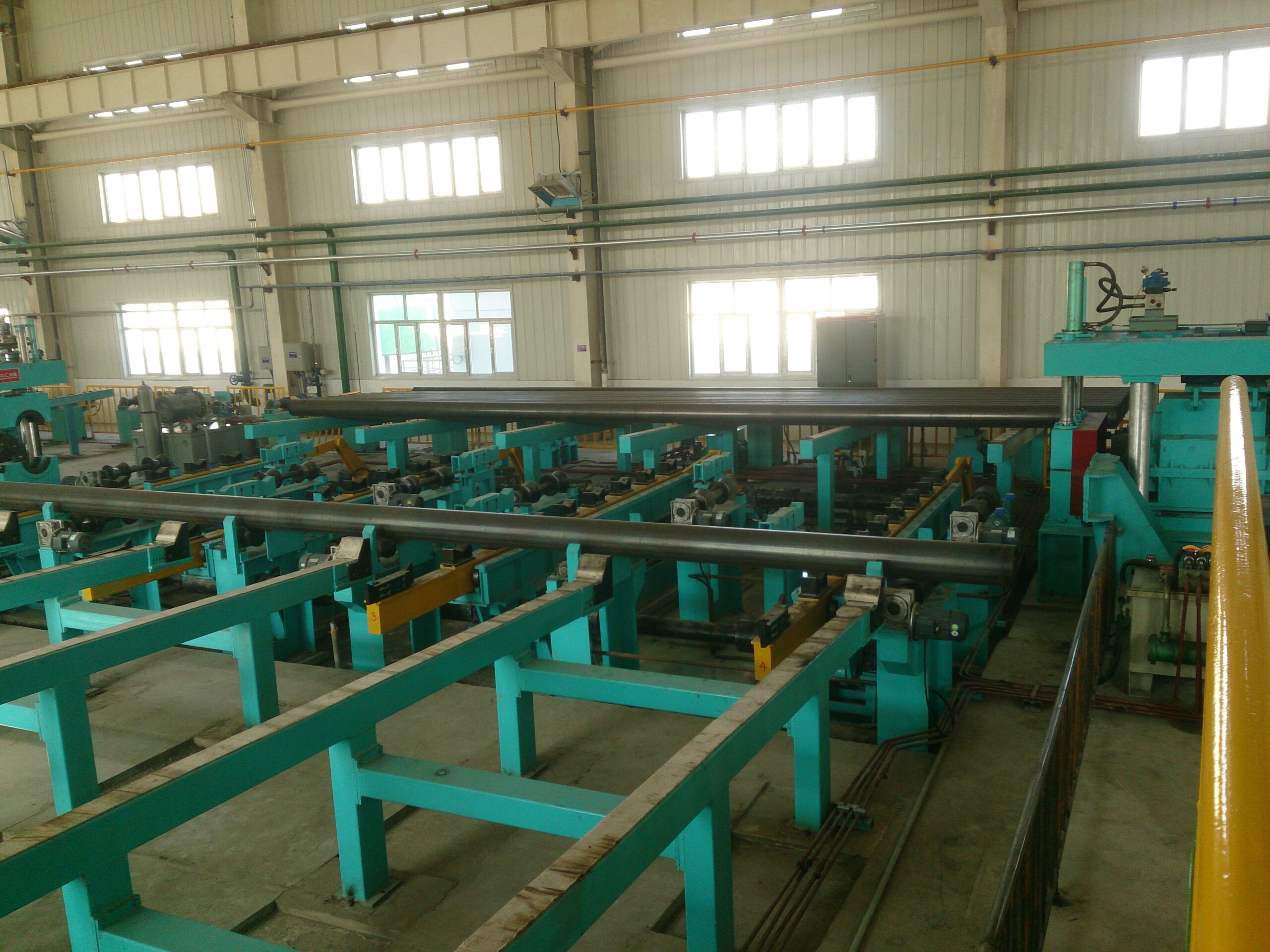

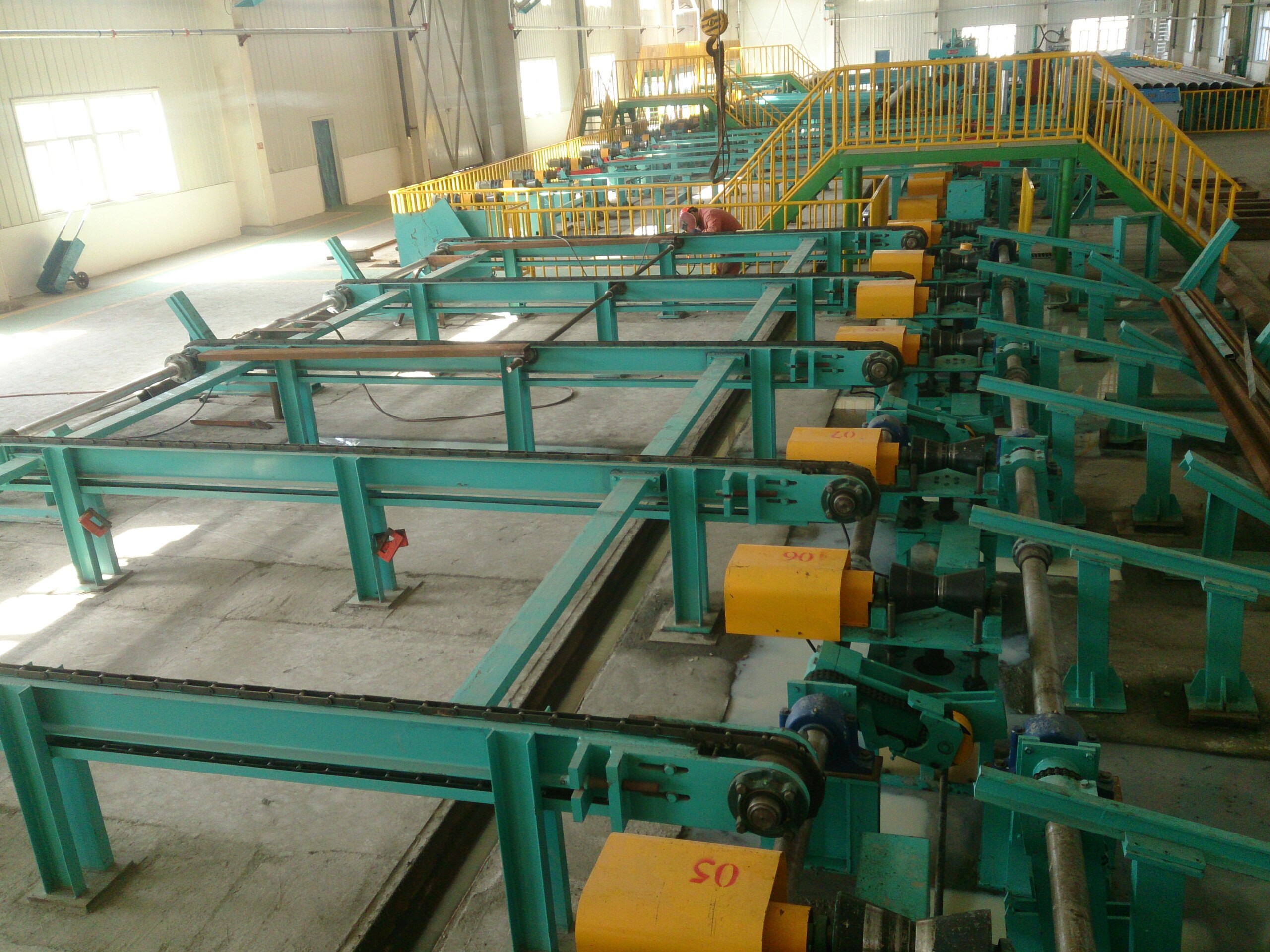

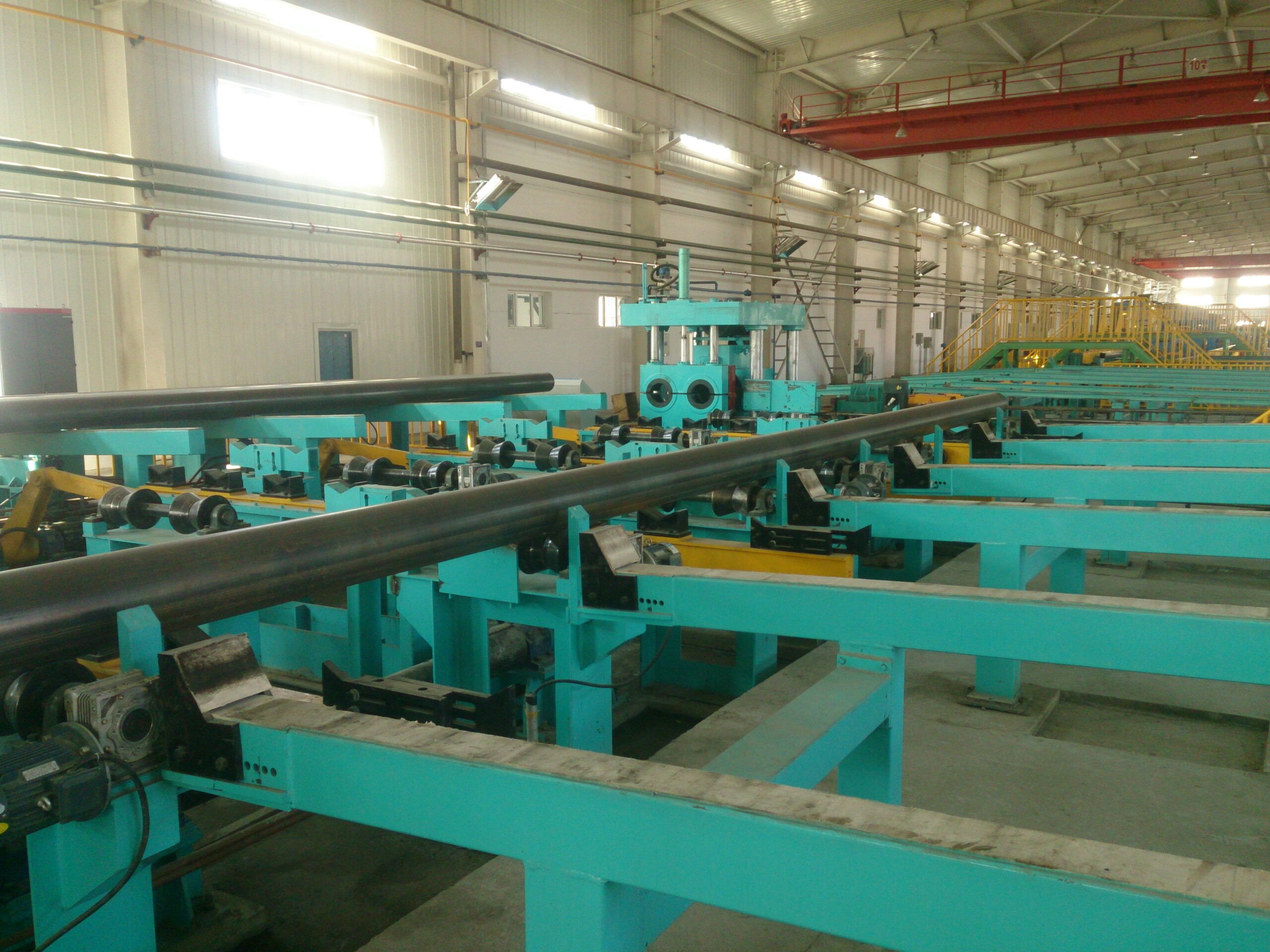

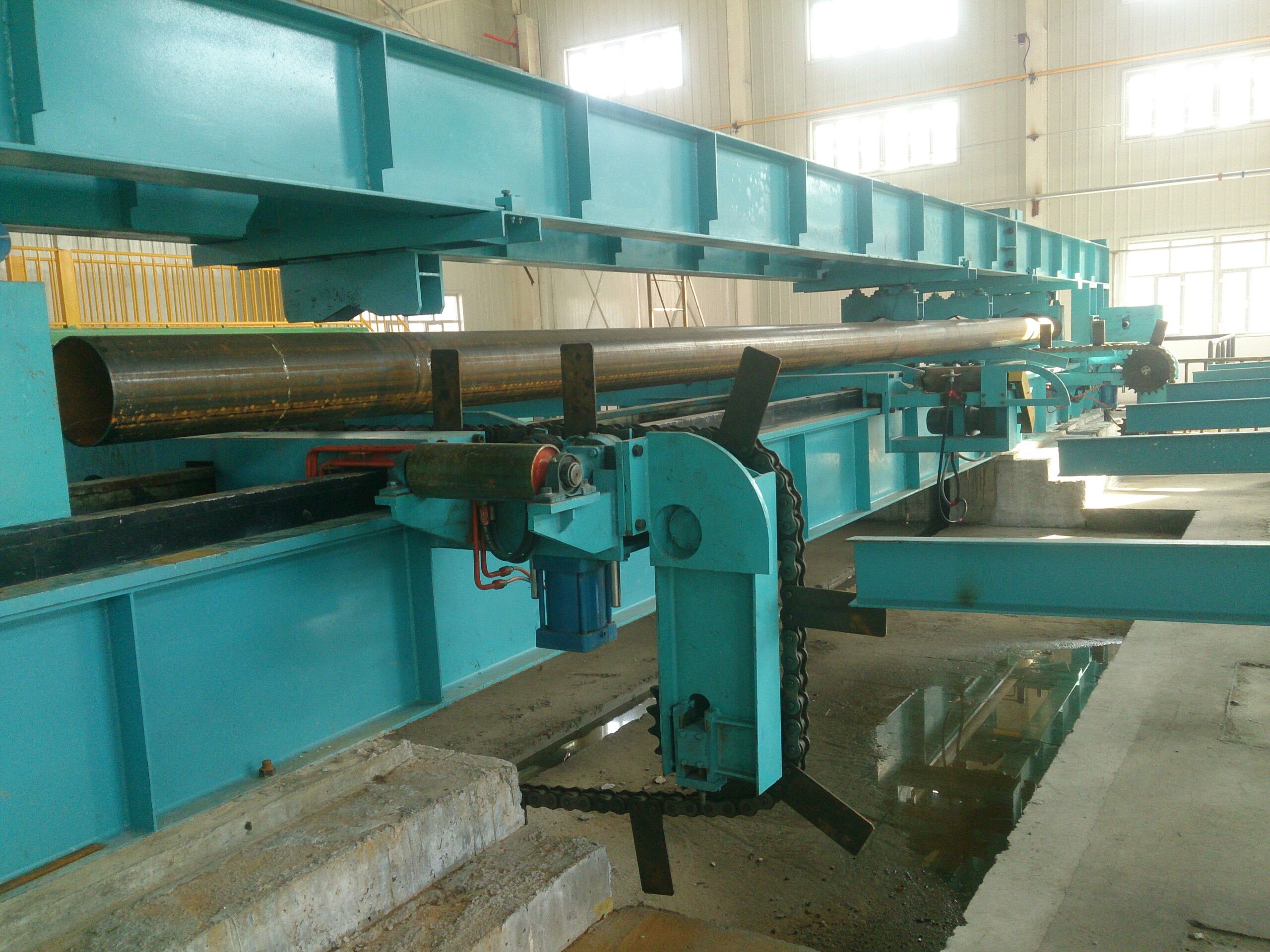

Auto-Stacking MC

Main technical parameters (general):

Maximum line speed of the production line: 140m / min

Maximum square pipe bundle diameter: 500 * 500mm

Specification of square pipe: 25mm □ ~100mm □;

rectangular pipe (20 * 40~50 * 100) mm

Round tube specification: Φ 40~ Φ114mm

Maximum round margin: 480mm

Maximum round tube bundle diagonal distance: 550mm

Maximum bundle weight: 1200kg / bundle

Center distance of the delivery chain: 3,800 mm

Tube length range: 4500-7500mm / branch

length Installed capacity: 12kW

Description: The company can design and manufacture according to the special needs of the user

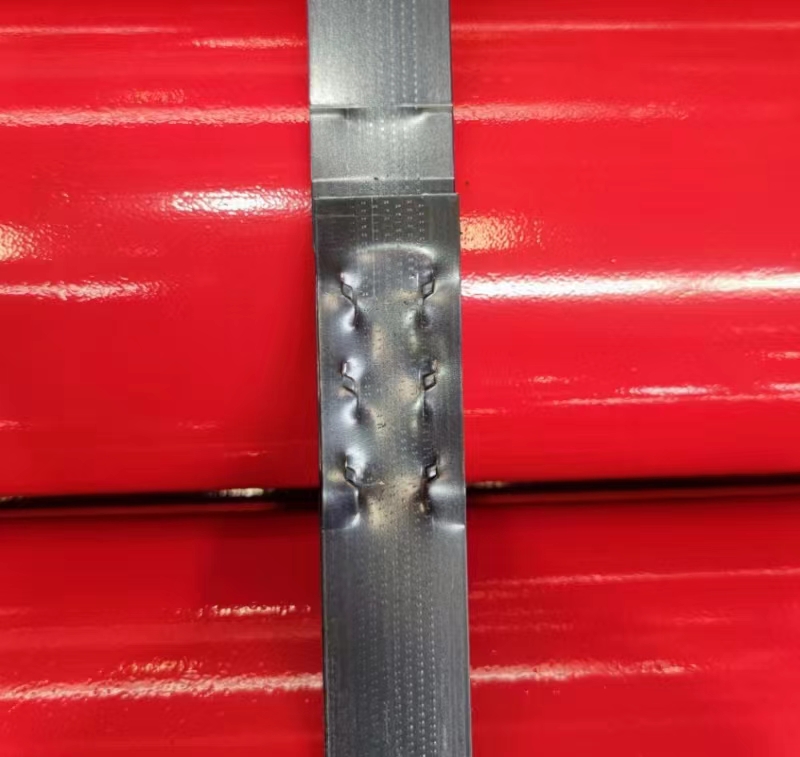

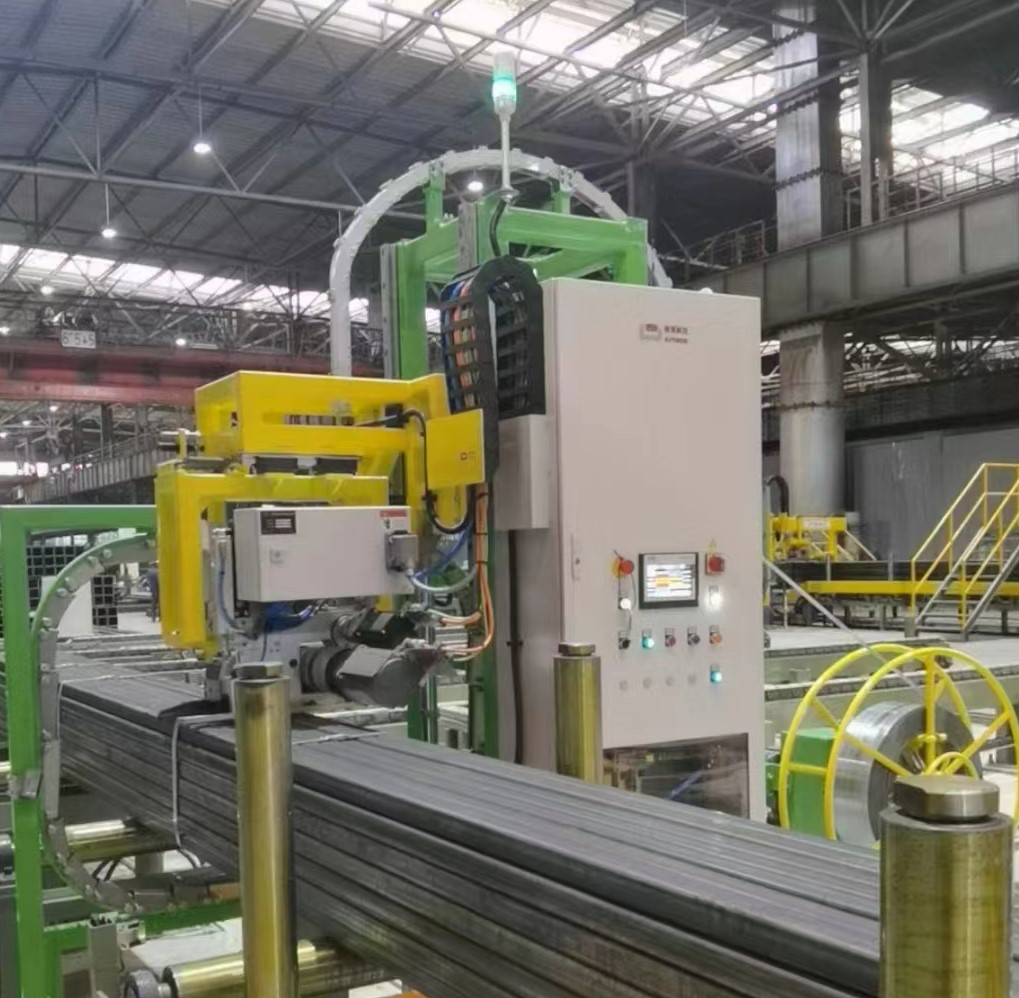

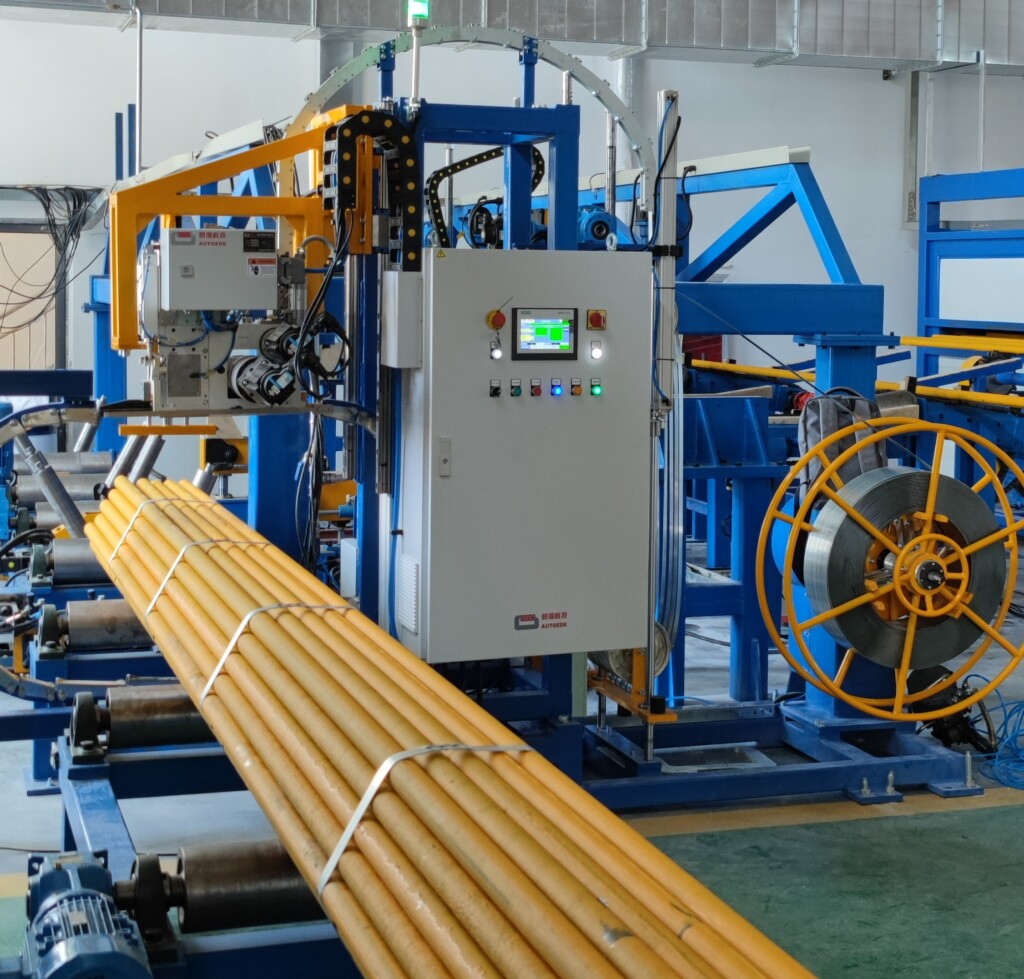

Auto-Packing MC

Packing product:Square pipe

Stacking type:square or rectangular type

Total length:unlimited

Total width:500mm-1000mm

Total height:300mm-700mm
