High Frequency Solid state welder is for carbon steel,stainless steel etct.

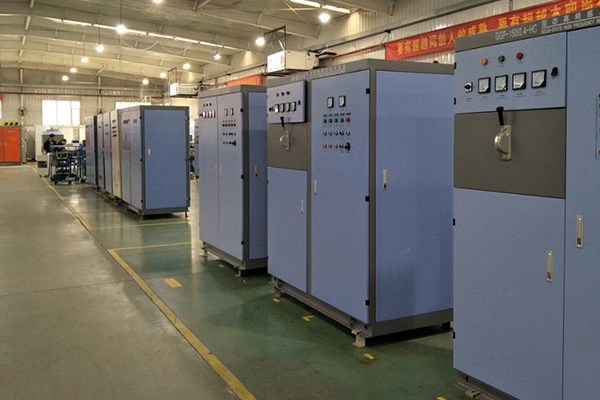

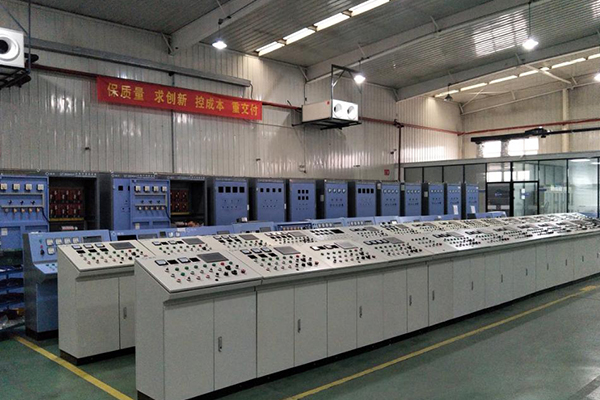

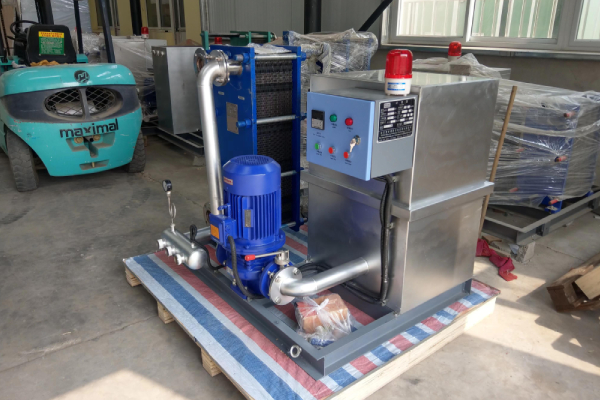

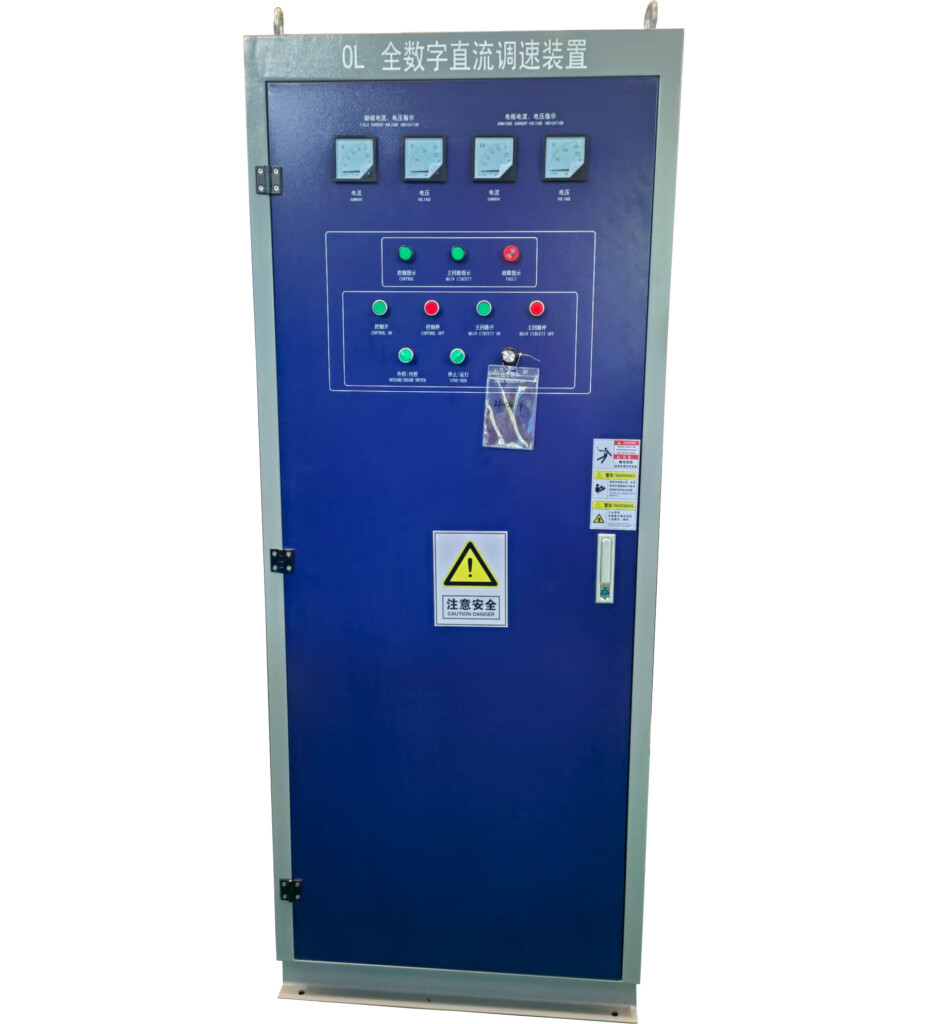

It consist of Rectifier cabinet,Modular inverter cabinet ( one air conditioner is provided),Water-water cooling device,Console,3- dimensional adjustment device.
| Model | AC input | Rated DC voltage | Rated DC current | Frequency scope |
| XGGP100-0.4-H | 3AC 380V 50/60HZ | 450V | 220A | 400-450 KHz |
| XGGP150-0.4-H | 3AC 380V 50/60HZ | 450V | 330A | 350-400 KHz |
| XGGP200-0.4-H | 3AC 380V 50/60HZ | 450V | 440A | 300-350 KHz |
| XGGP250-0.4-H | 3AC 380V 50/60HZ | 450V | 550A | 250-300 KHz |
| XGGP300-0.4-H | 3AC 380V 50/60HZ | 450V | 660A | 250-300 KHz |
| XGGP400-0.4-H | 3AC 380V 50/60HZ | 450V | 660A | 250-300 KHz |
