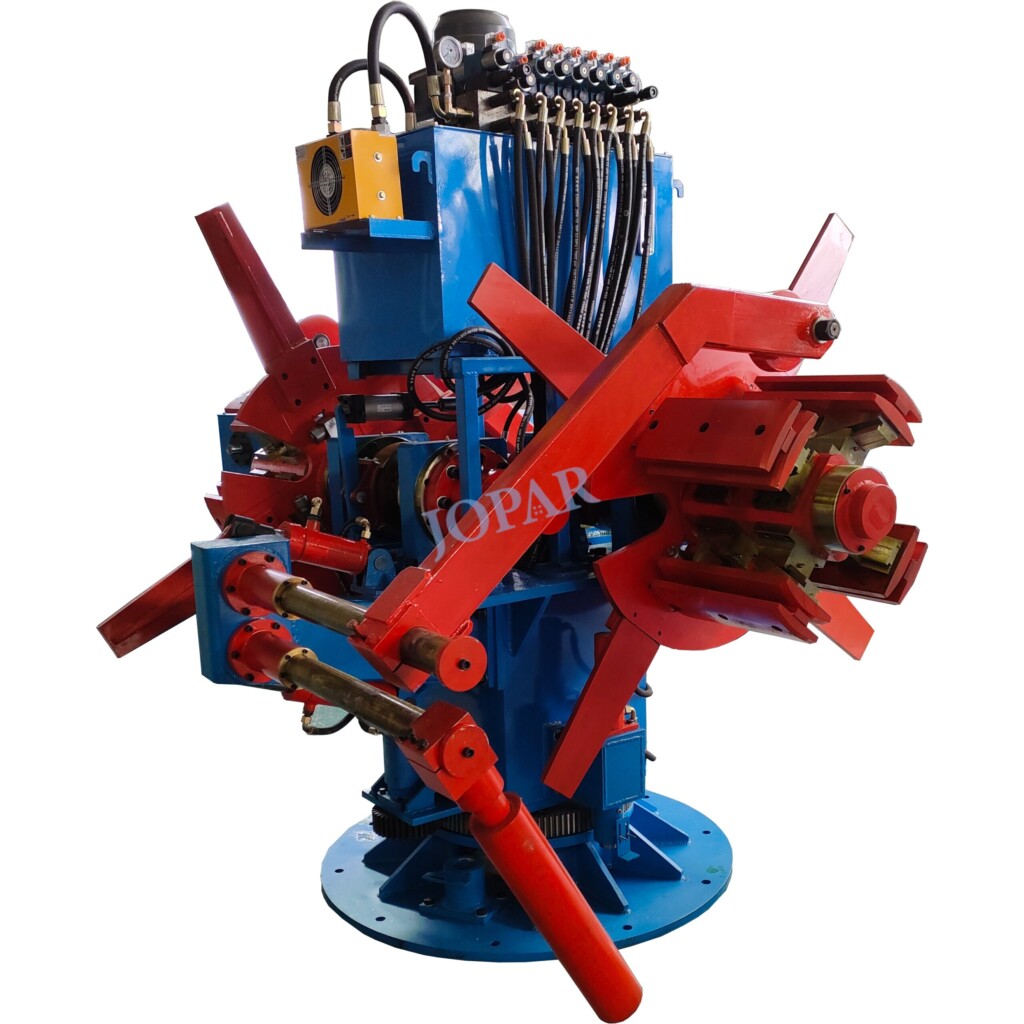

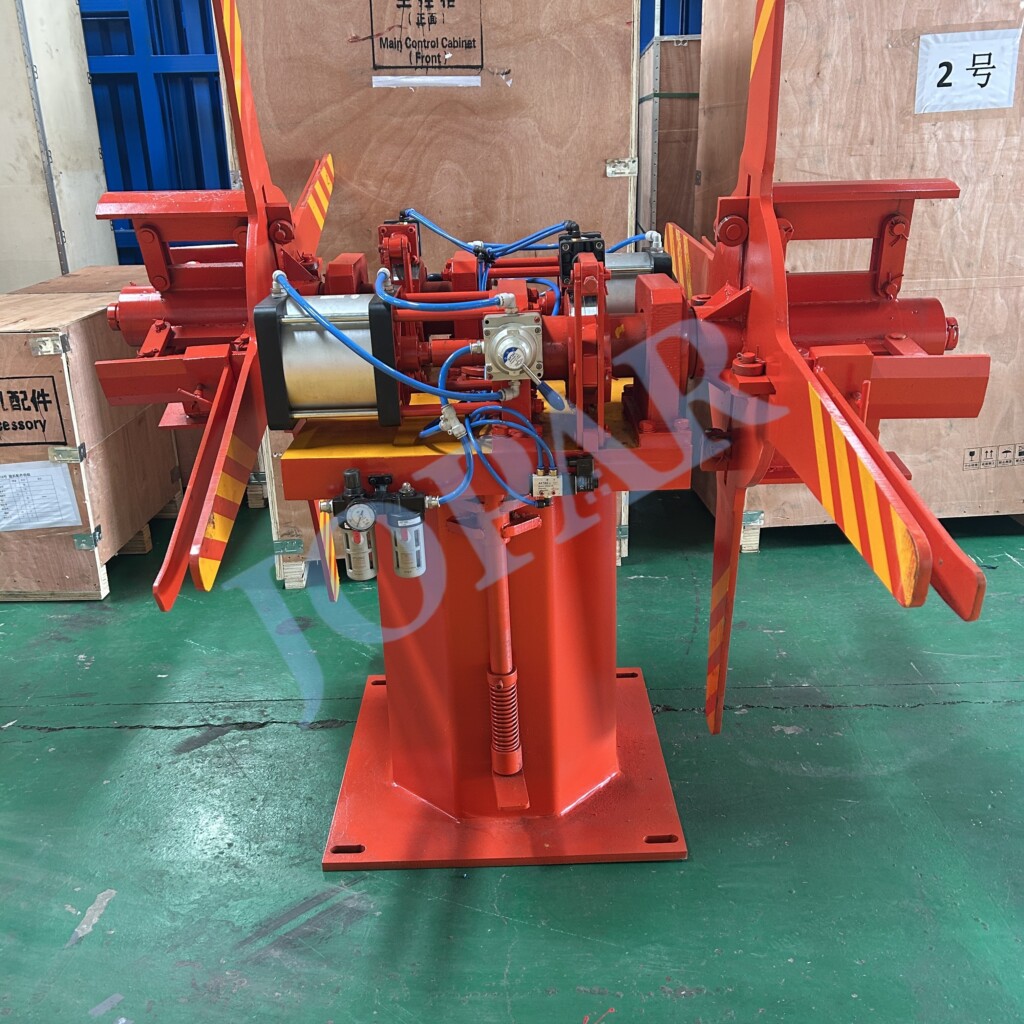

| Function | It is used to hold, uncoil the coils. |
| Max coil weight | Max. 3 Tons for each side |

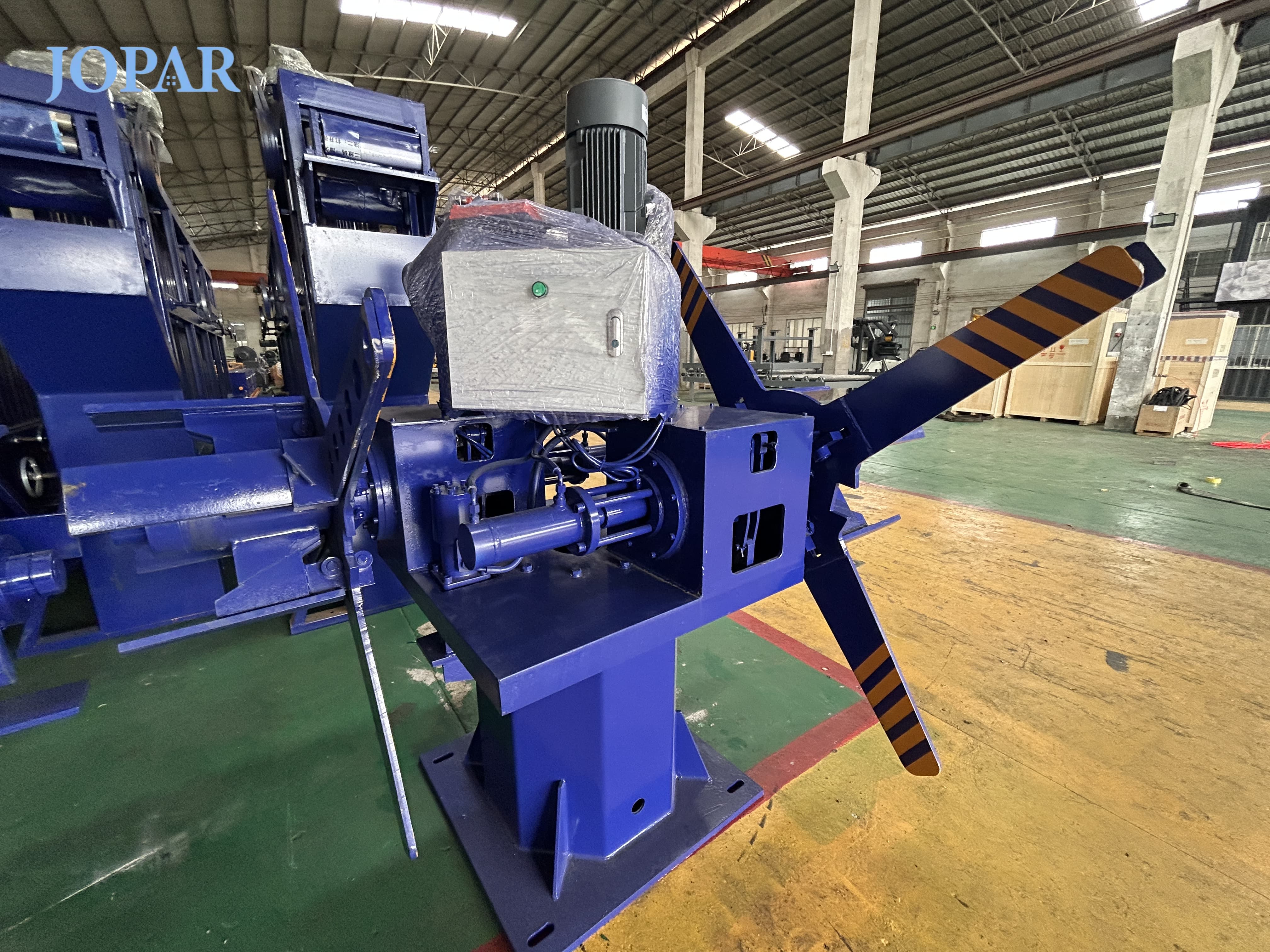

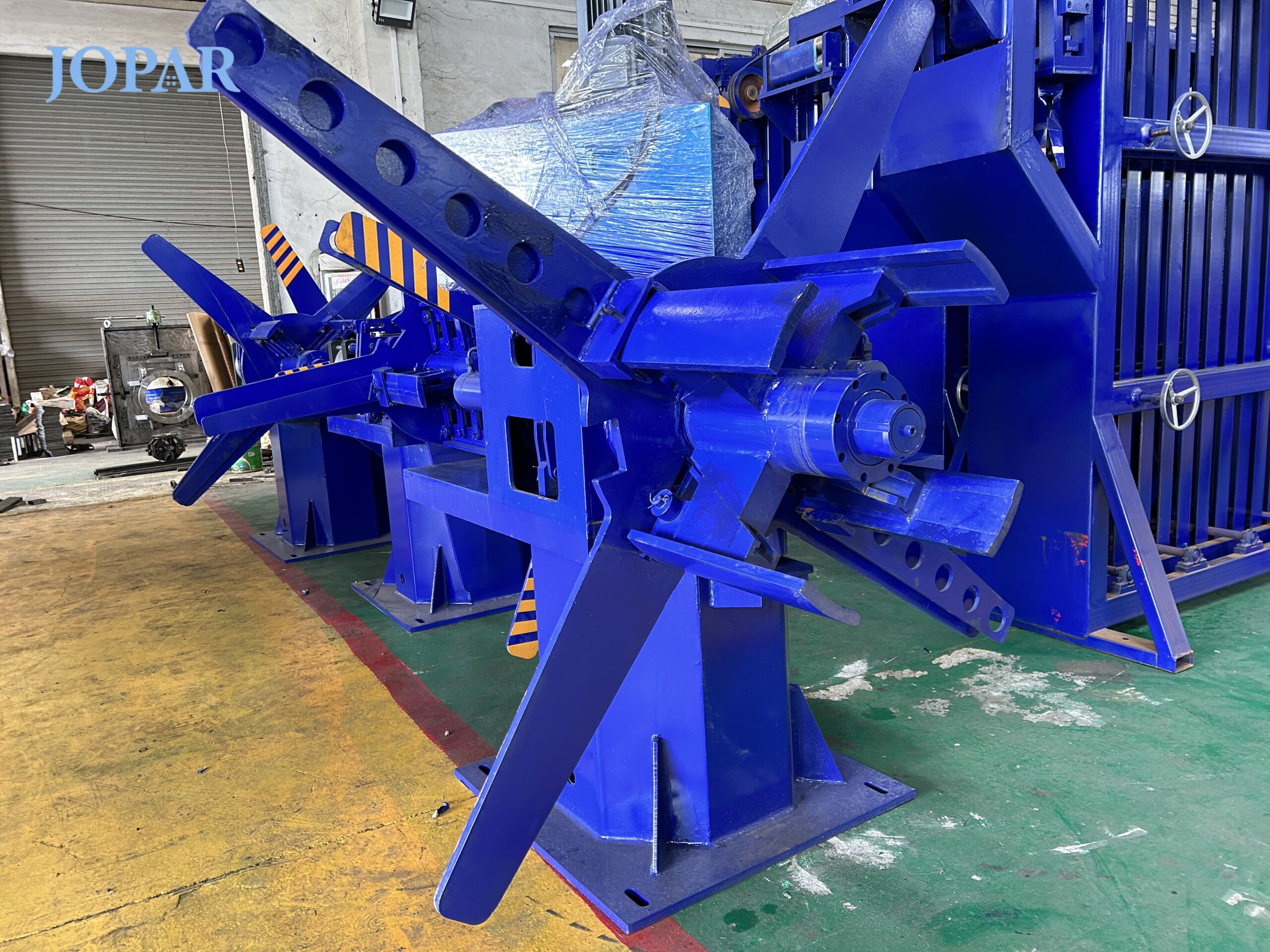

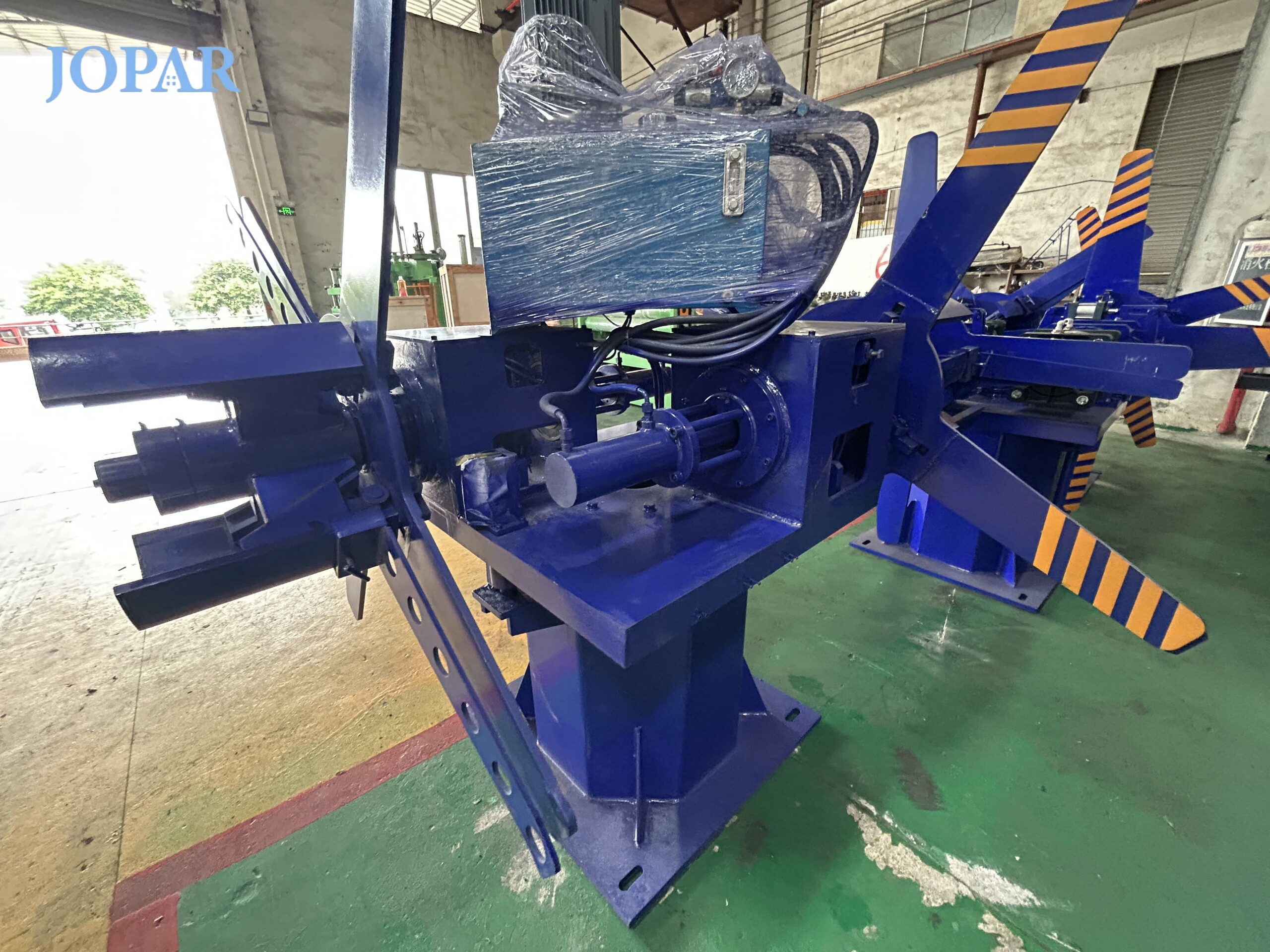

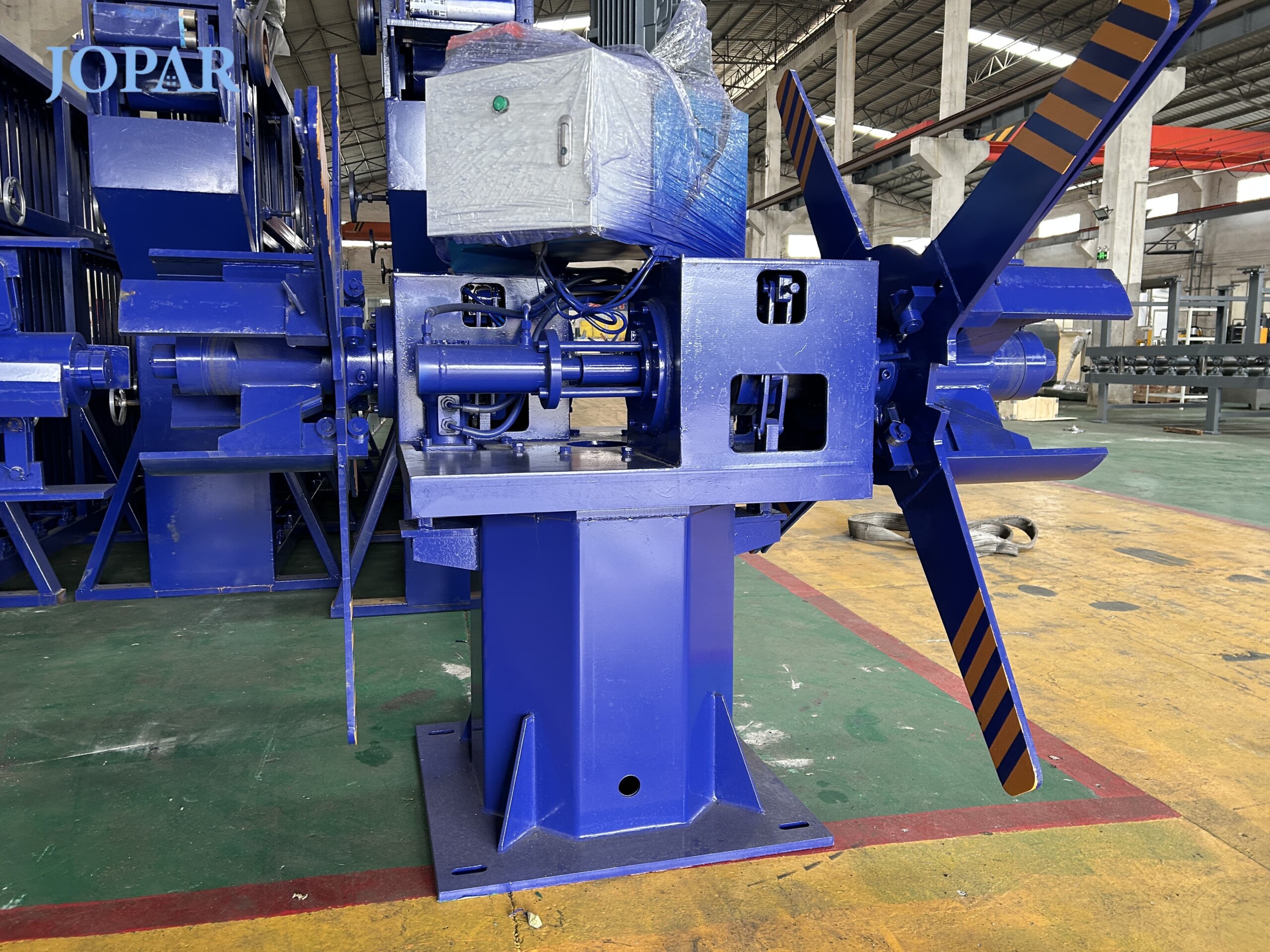

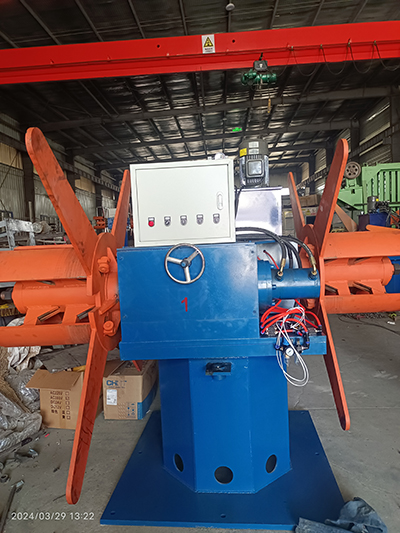

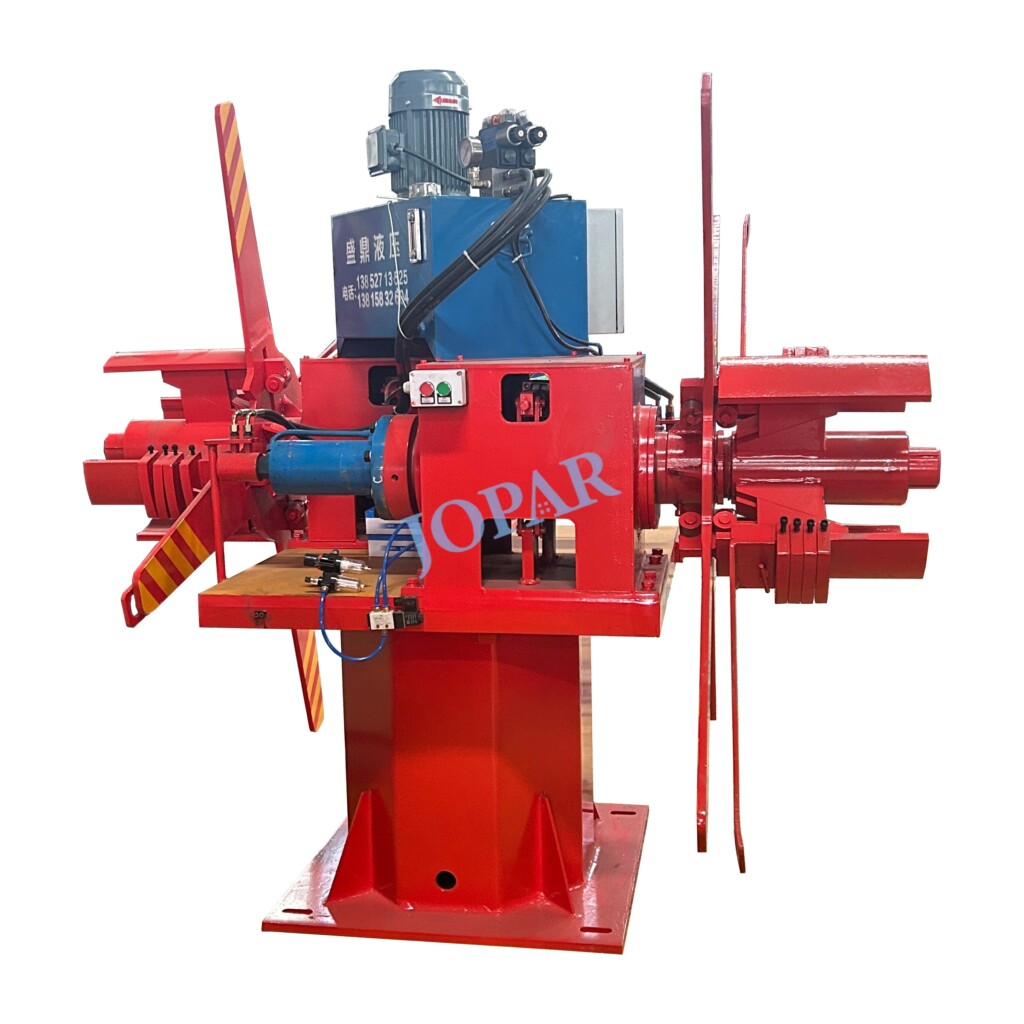

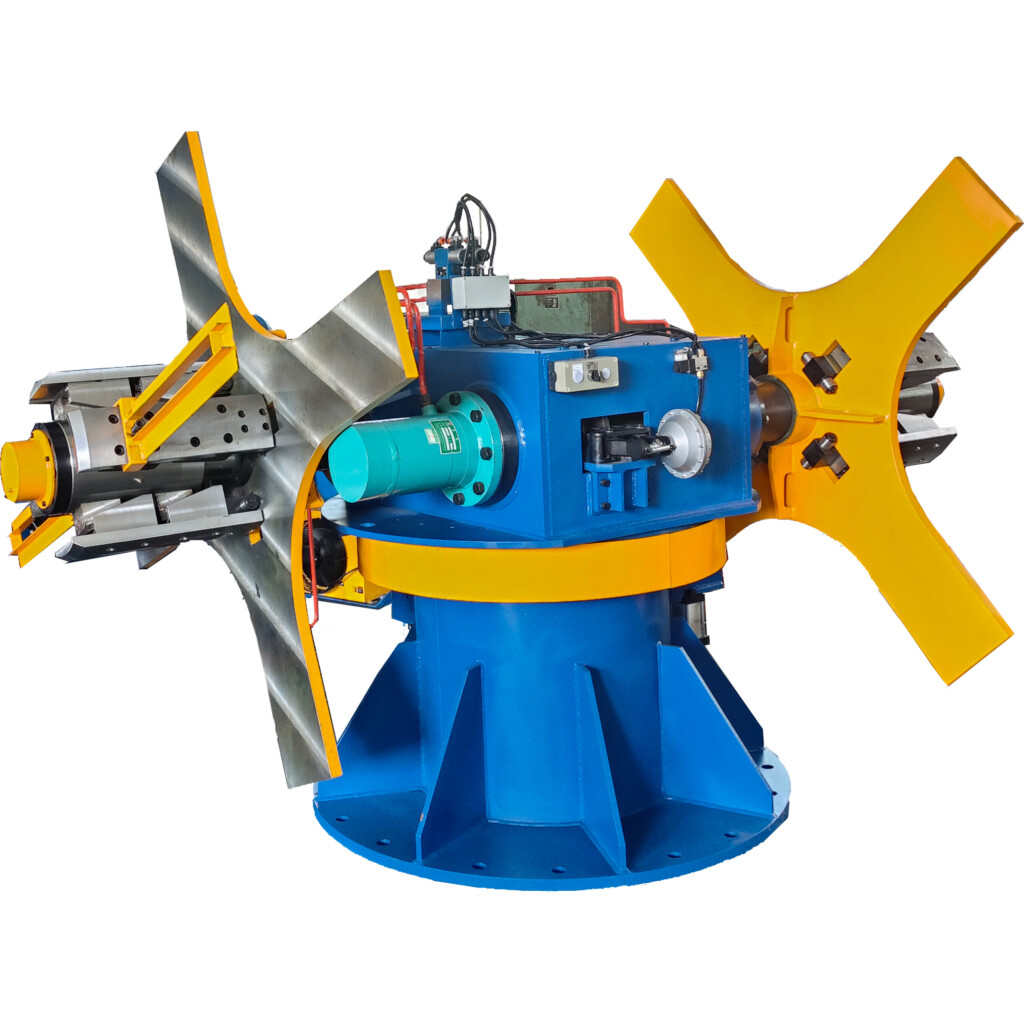

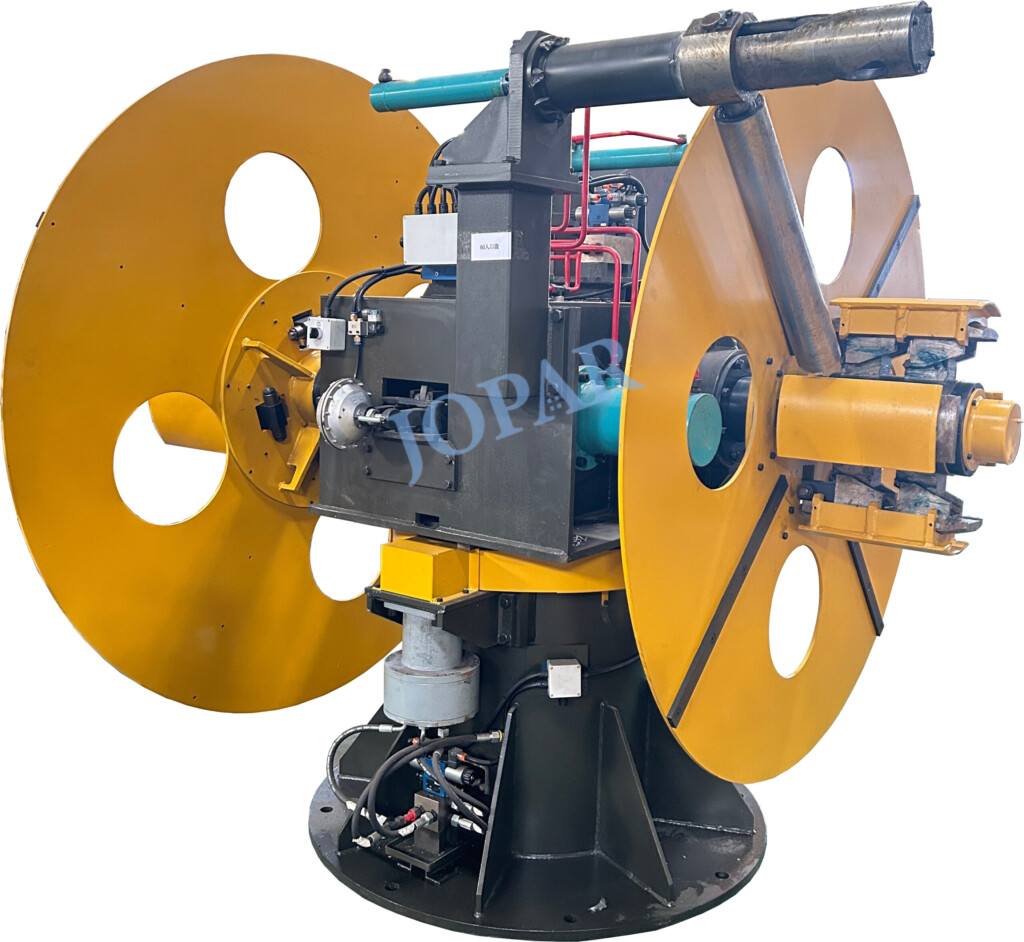

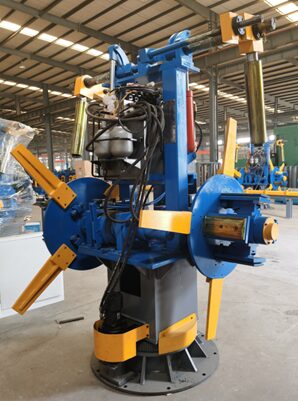

| Type | Double Mandrel |
| Cone structure | Adopting a combination of four wedge-shaped sliders, it is sturdy and stable. |
| Cone expansion type | Hydraulic expansion. Coil I.D. Ø420mm~Ø520mm |
| Cone brake | Air brake with weak and strong brake, which can prevent coil to roll out |
| Core axis transposition method | Electric displacement, rotating 180 degrees, Equipped with pneumatic locking device and rotary support, it has a large bearing capacity and smooth rotation. |
