Slitting machine is mainly used for the cutting of steel sheets to some suitable size of steel strips. They’re mainly used for producing steel pipes or punching process.
Technological Process
Coil Preparation → Loading Coil → Uncoiling → Peeling → Pinching and Rough Flattening → Loop → Guiding → Fine Flattening → Measuring Length → Shearing → Conveying → Stacking → Unloading Sheets → Packing → Storing

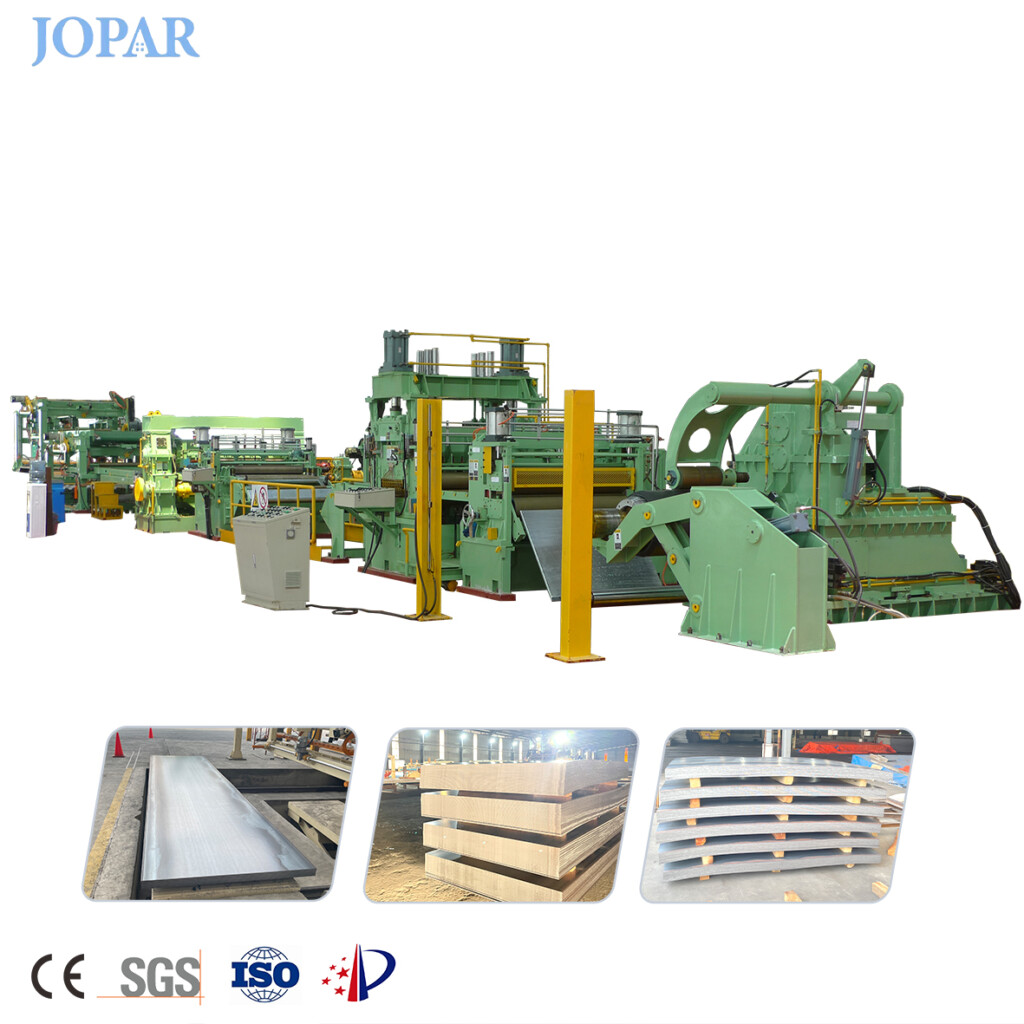

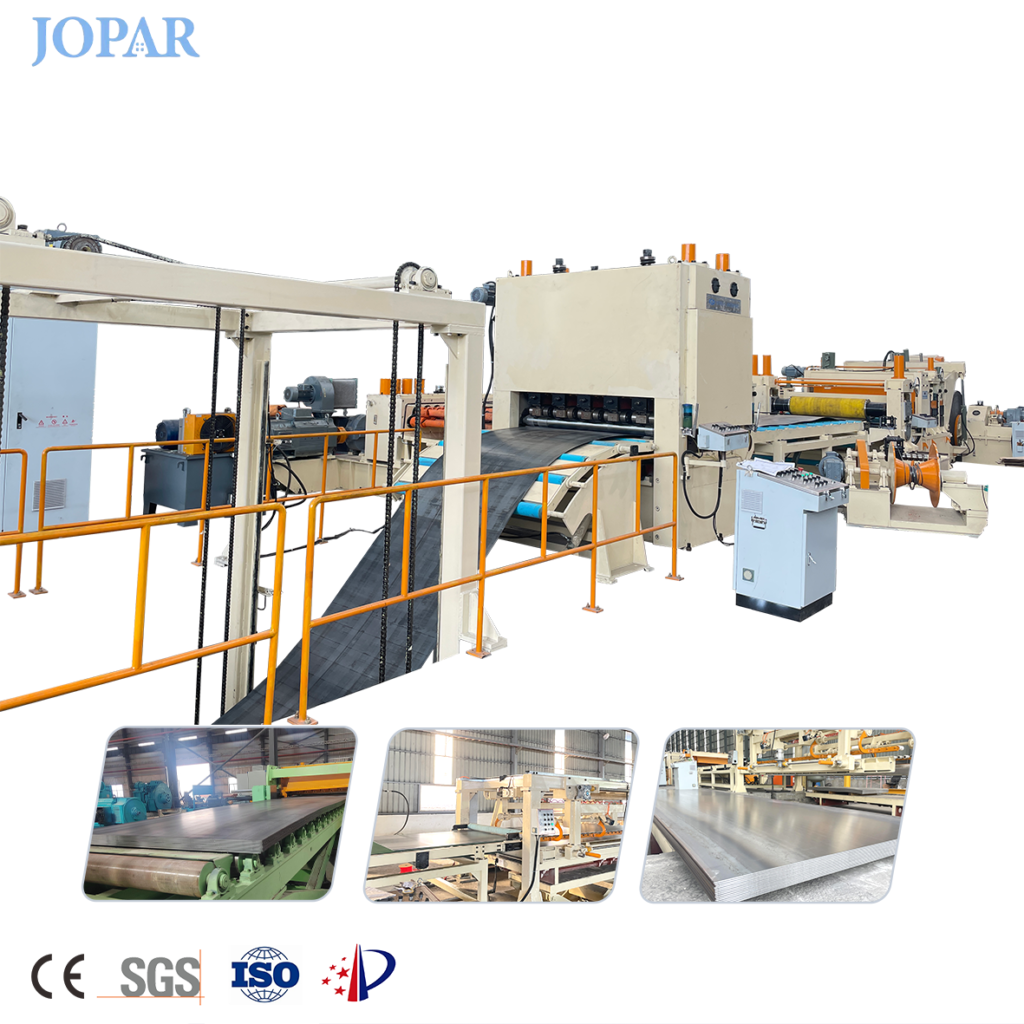

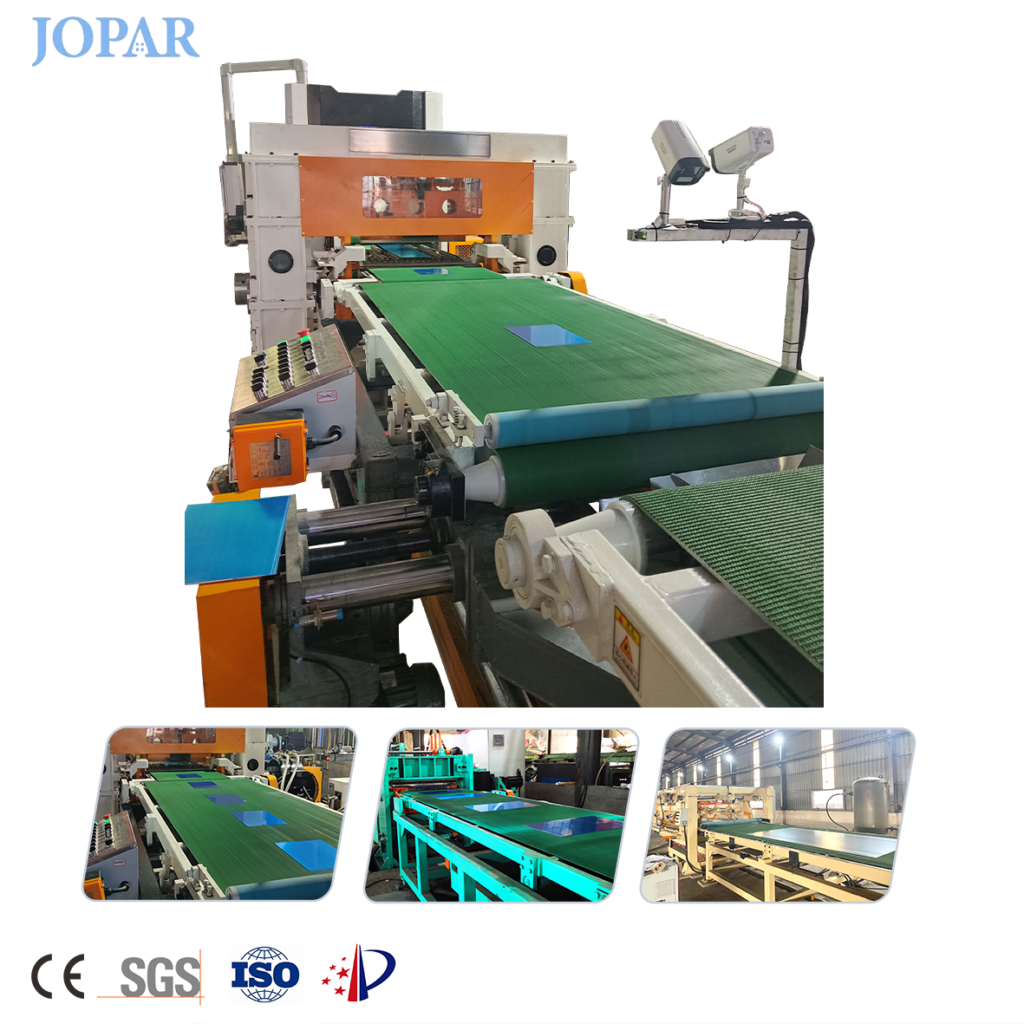

| Cut To Length Line | ||||||
| Model | Strip Width(mm) | Strip Thickness(mm) | ||||
| CTL850×1.5 | 300-800 | 0.2-1.5 | ||||
| CTL1300×2 | 500-1250 | 0.3-2.0 | ||||
| CTL1600×3 | 600-1550 | 0.3-3.0 | ||||
| CTL1600×4 | 600-1550 | 0.5-4.0 | ||||
| CTL1600×6 | 600-1550 | 1.0-6.0 | ||||
| CTL1850×8 | 600-1800 | 2.0-8.0 | ||||
| CTL2000×12 | 800-2000 | 3.0-12 | ||||
| CTL2000×16 | 800-2000 | 4.0-16 | ||||
| CTL2200×20 | 800-2200 | 6.0-20 | ||||
| CTL2200×25 | 800-2200 | 6.0-25 | ||||
