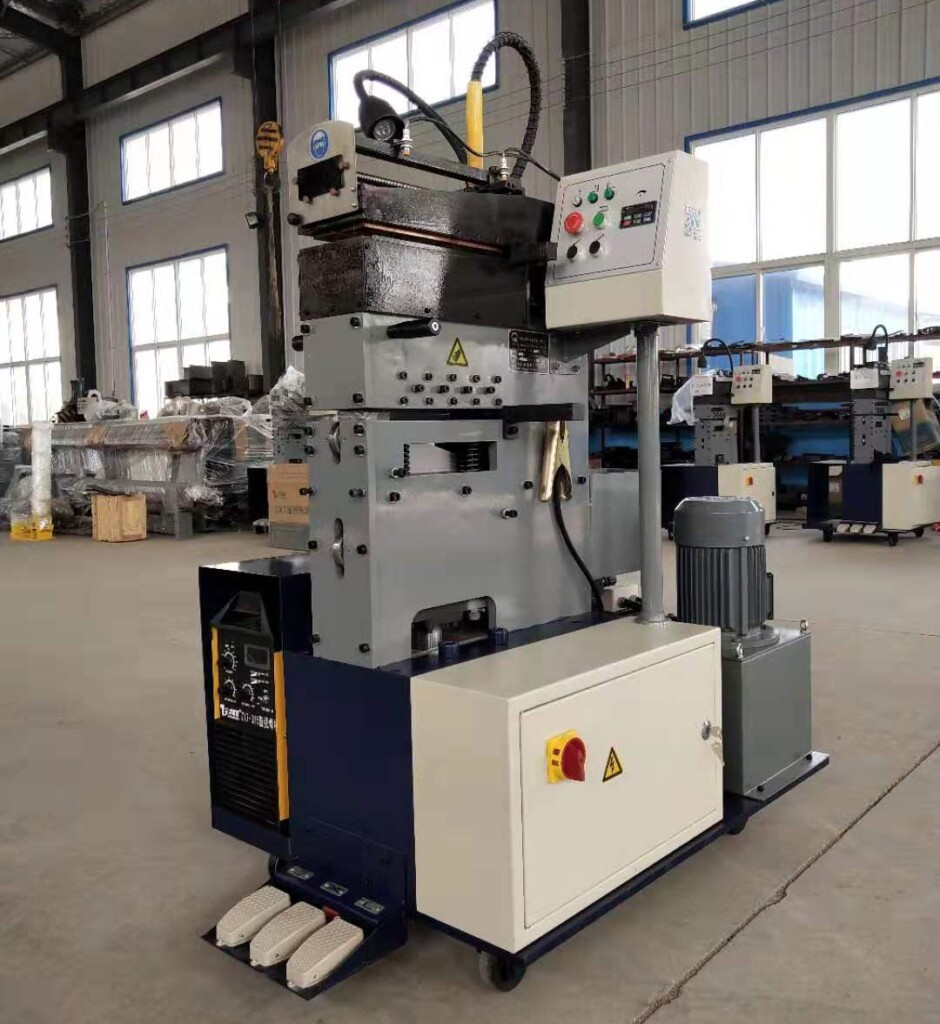

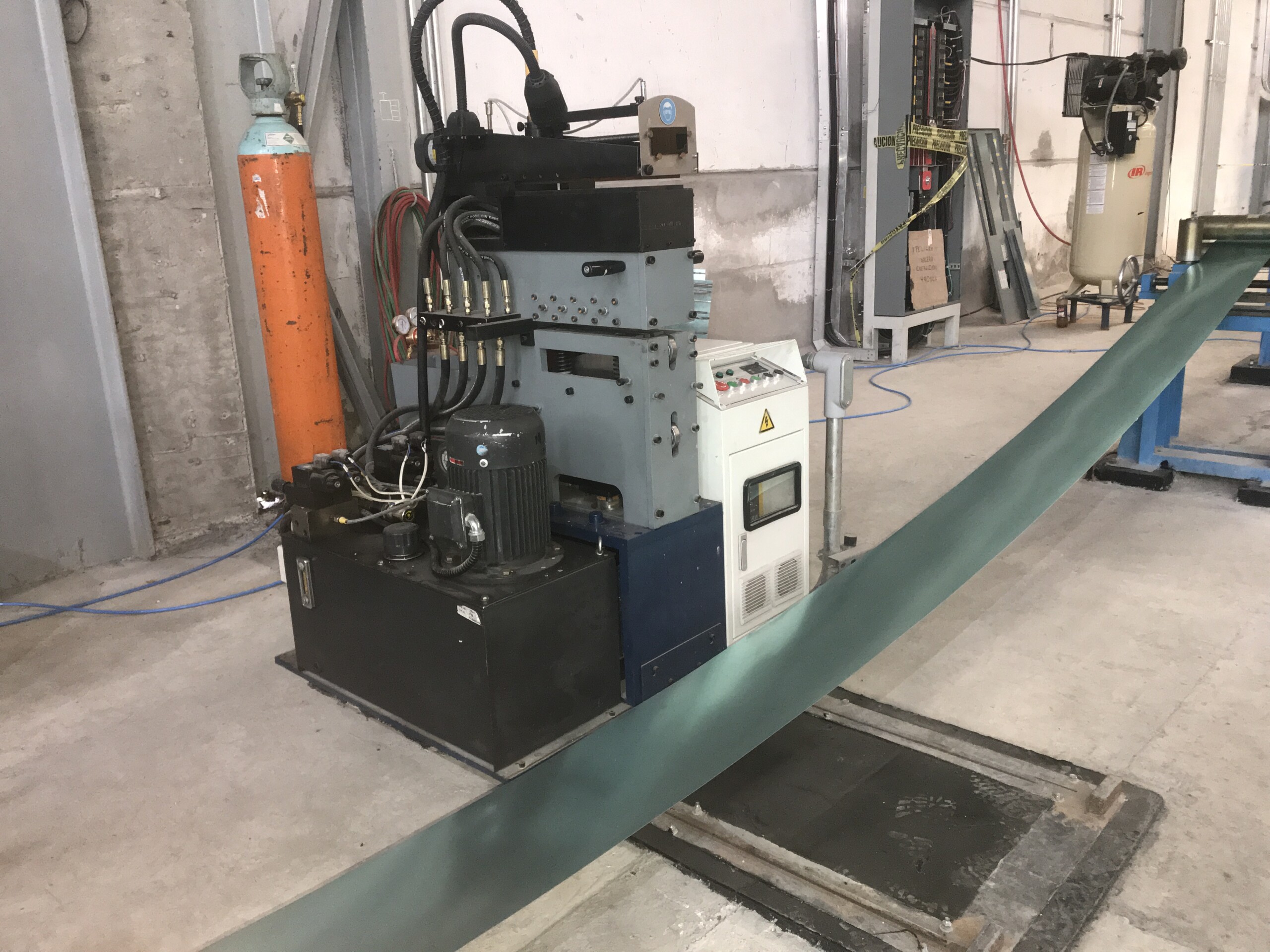

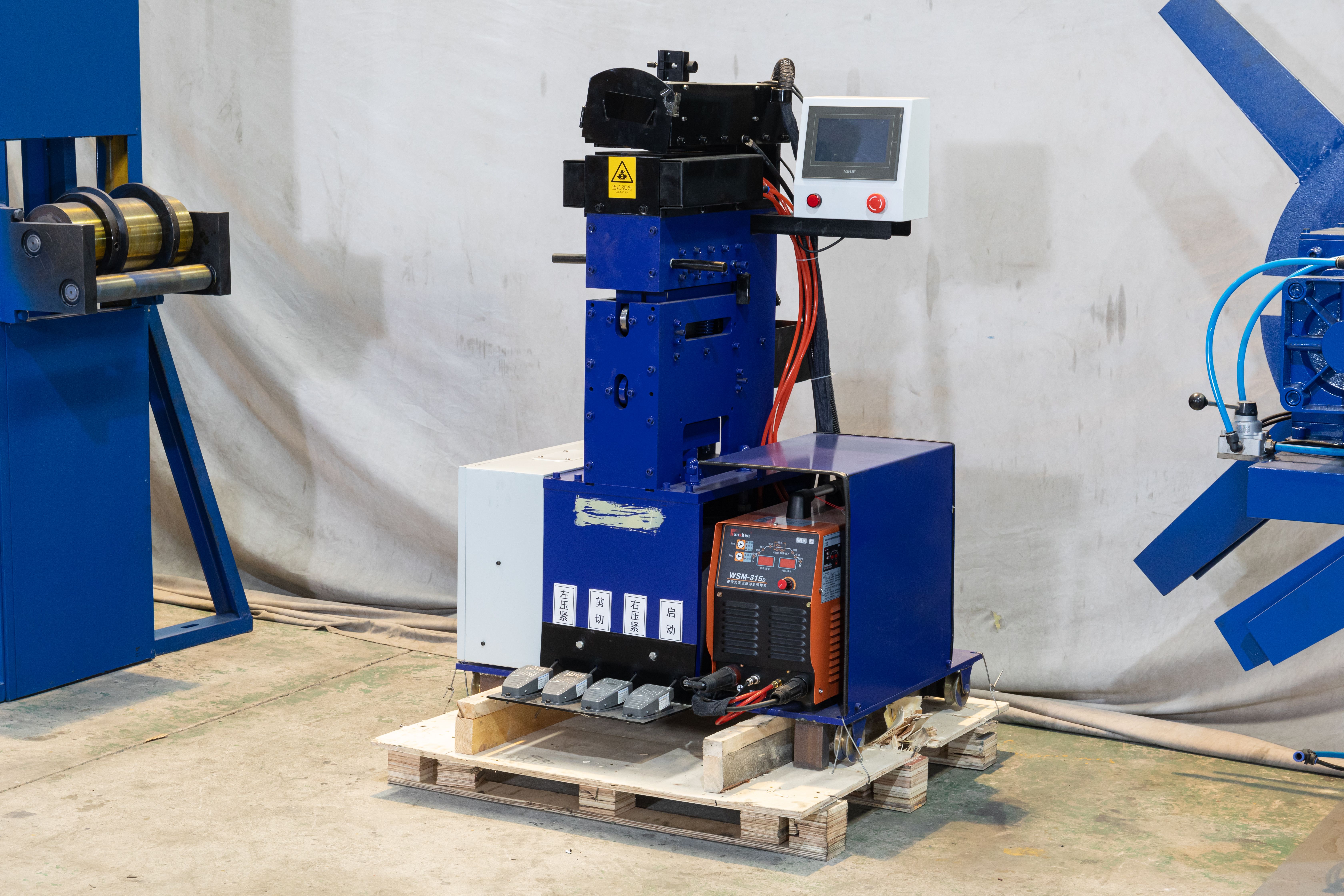

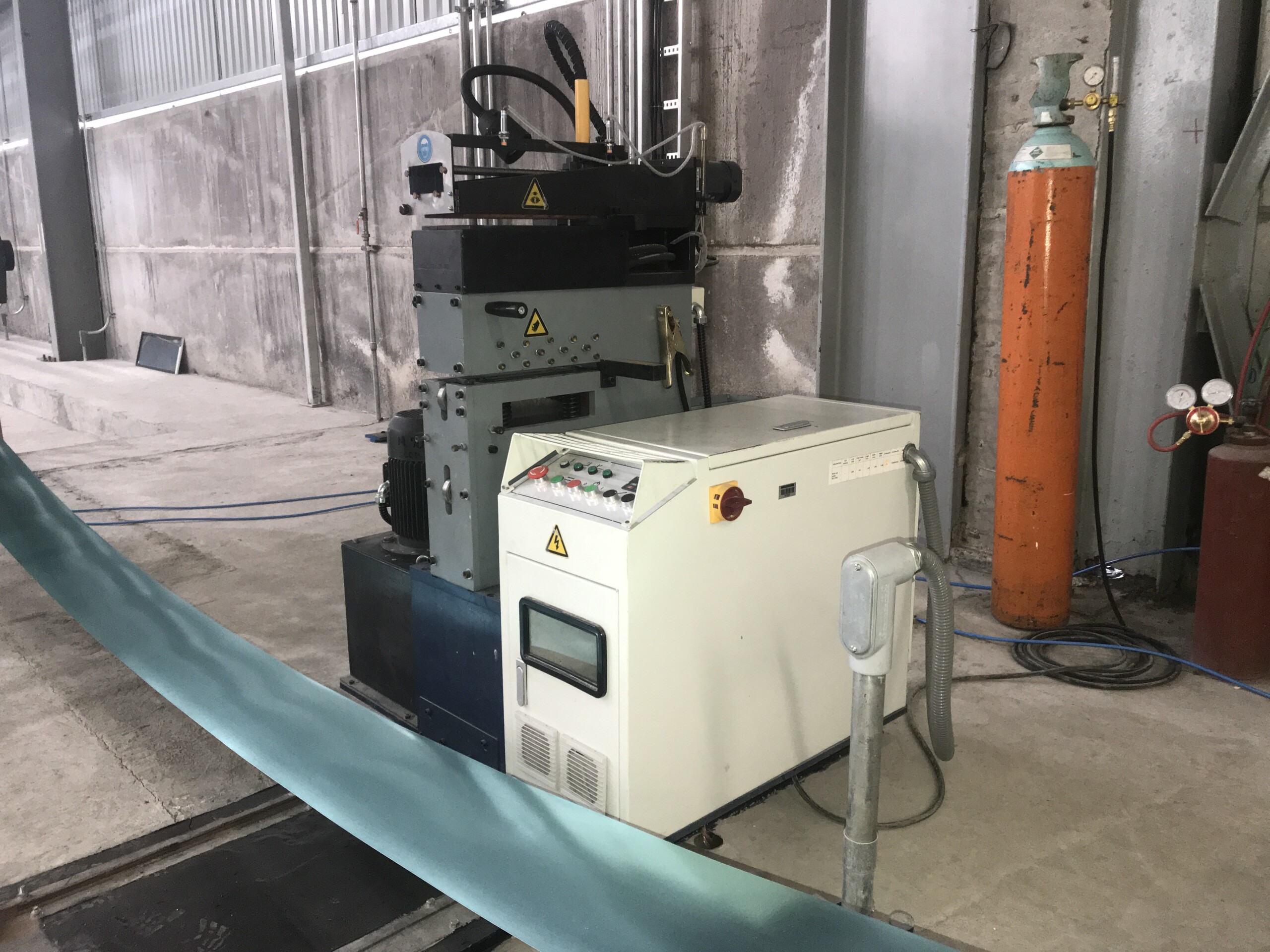

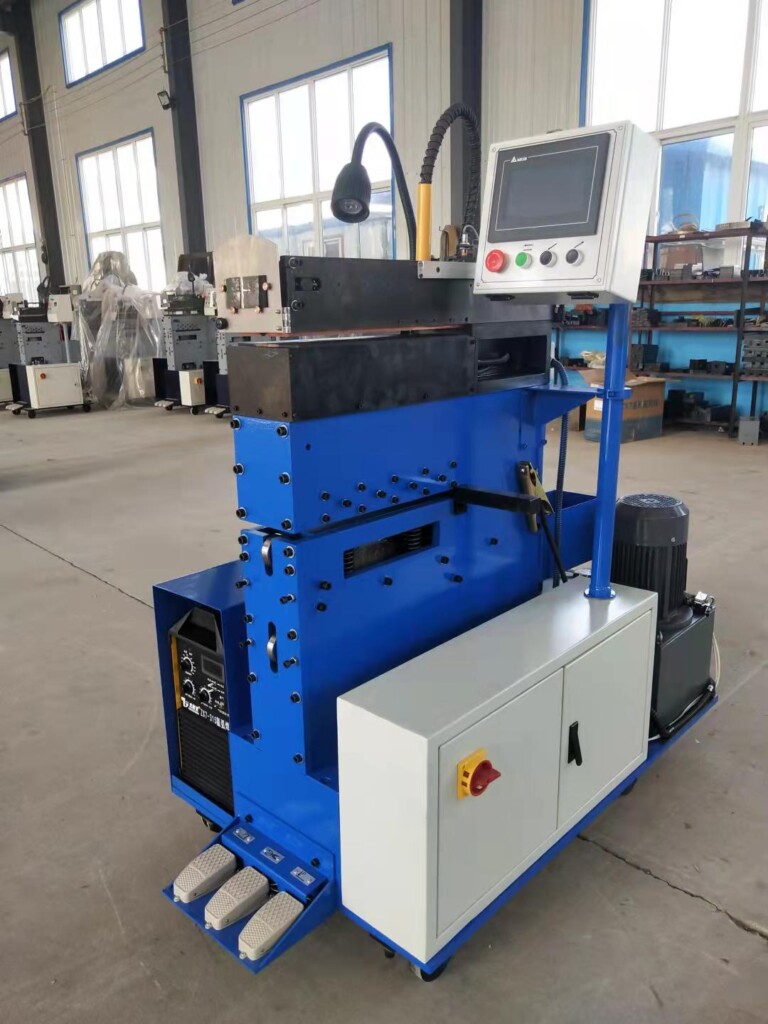

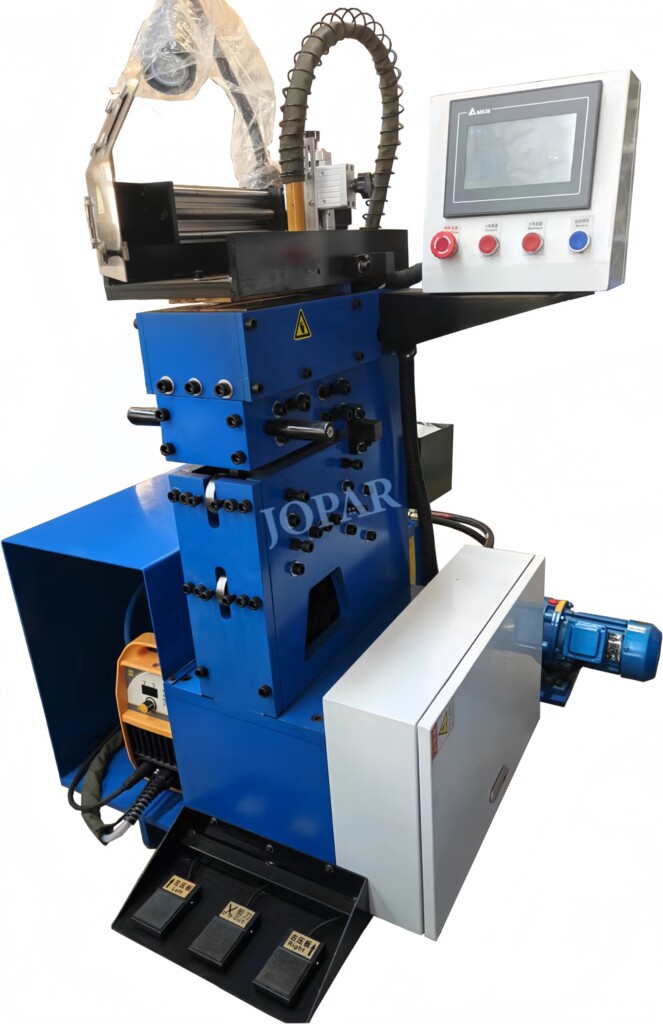

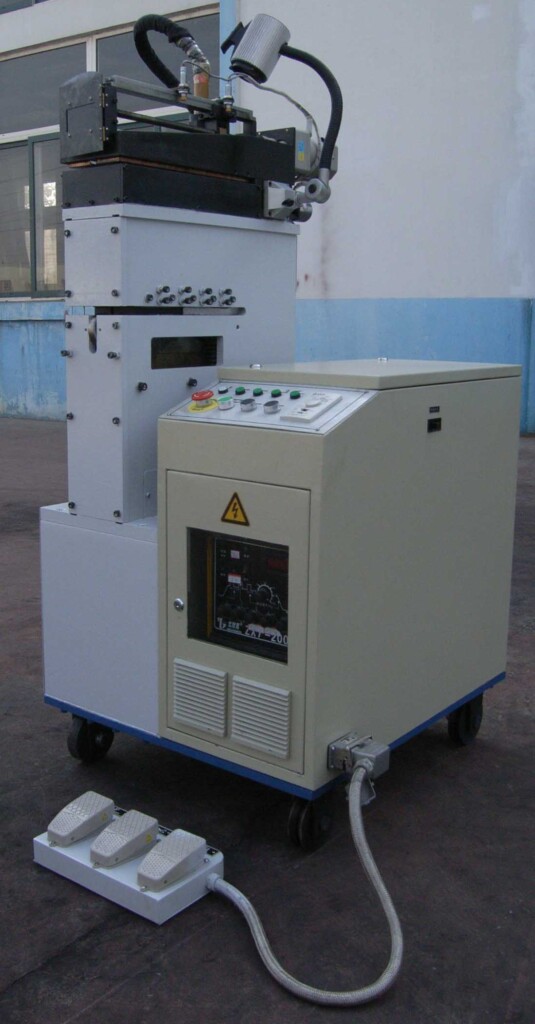

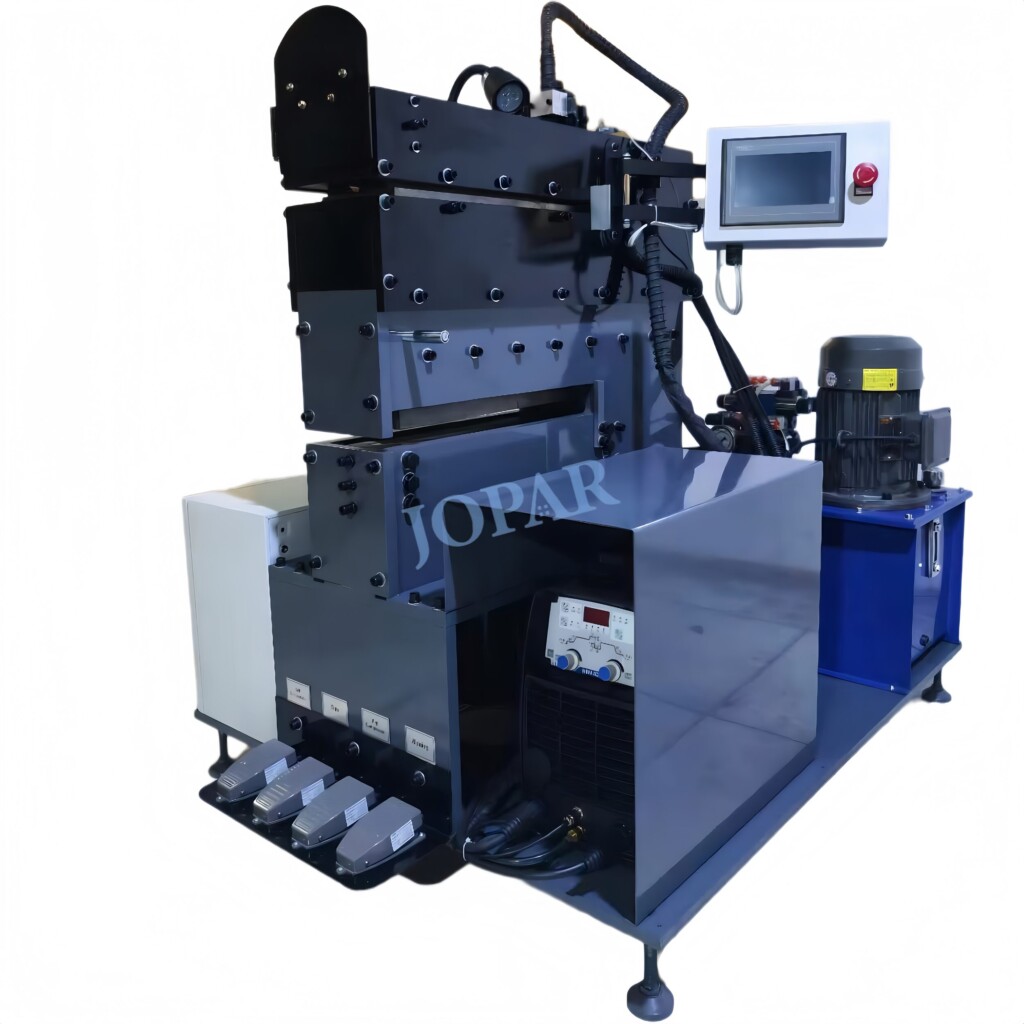

Metal shear butt welding machine adopts TIG argon arc welding, welding metal strips of different materials (such as carbon steel, stainless steel, aluminum, Titanium and copper violet, etc.).
|
Model |
Strip width（mm） | Welding thickness（mm) | Speed（mm/min) | current（A） | Airpressure（MPa) | Gaspressure（MPa） |
Dimension |
||
| Copper or Aluminum | Carbon steel |
L×W×H |
|||||||
|
DJJ-160A |
30-160 |
0.4-2.0 |
0.4-2.0 |
75-500 |
12-160 |
0.6 |
|
830×690×1580 |
|
|
DJJ-160B |
30-160 |
0.5-3.0 |
0.5-3.0 |
75-500 |
15-200 |
0.6 |
|
860×690×1580 |
|
|
DJJ-160B+ |
30-160 |
0.5-3.5 |
0.5-3.5 |
75-500 |
15-200 |
0.6 |
7 |
1120×710×1450 |
|
|
DJJ-160C |
30-160 |
0.8-5.0 |
0.5-5.0 |
75-500 |
15-200 |
|
7 |
880×870×1480 |
|
|
DJJ-260A |
50-260 |
0.4-2.0 |
0.4-2.0 |
75-500 |
15-200 |
0.6 |
|
1050×745×1580 |
|
|
DJJ-260B |
50-260 |
0.5-3.0 |
0.5-3.0 |
75-500 |
18-250 |
0.6 |
|
1050×745×1580 |
|
|
DJJ-260B+ |
50-260 |
0.5-4.0 |
0.5-3.5 |
75-500 |
18-250 |
0.6 |
7 |
1205×780×1580 |
|
|
DJJ-260C |
50-260 |
0.8-5.0 |
0.8-5.0 |
75-500 |
18-250 |
|
7 |
1038×1020×1650 |
|
|
DJJ-360A |
80-360 |
0.4-2.0 |
0.4-2.0 |
75-500 |
22-315 |
0.6 |
|
1170×745×1700 |
|
|
DJJ-360B |
80-360 |
0.5-3.0 |
0.5-3.0 |
75-500 |
15-200 |
0.6 |
|
1170×745×1700 |
|
|
DJJ-360B+ |
80-360 |
0.5-4.0 |
0.5-3.8 |
75-500 |
18-250 |
0.6 |
7 |
1170×780×1700 |
|
|
DJJ-360C |
80-360 |
0.5-4.0 |
0.5-5.0 |
75-500 |
22-315 |
|
7 |
1270×1020×1720 |
|
|
DJJ-400A |
80-400 |
0.5-2.0 |
0.5-2.0 |
75-500 |
15-200 |
0.6 |
|
1145×750×1580 |
|
|
DJJ-400B |
80-400 |
0.5-3.0 |
0.5-3.0 |
75-500 |
18-250 |
0.6 |
|
1210×745×1700 |
|
