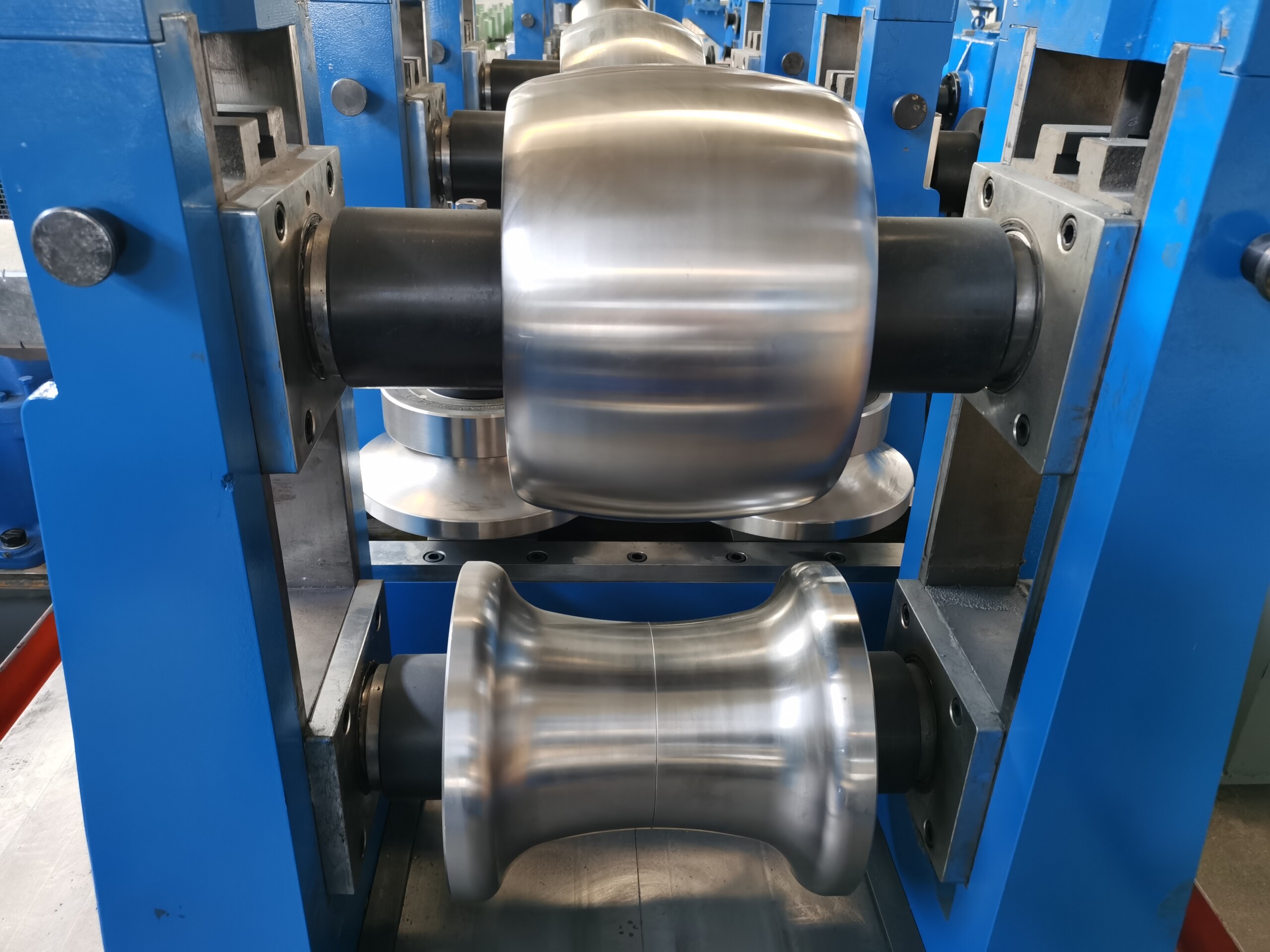

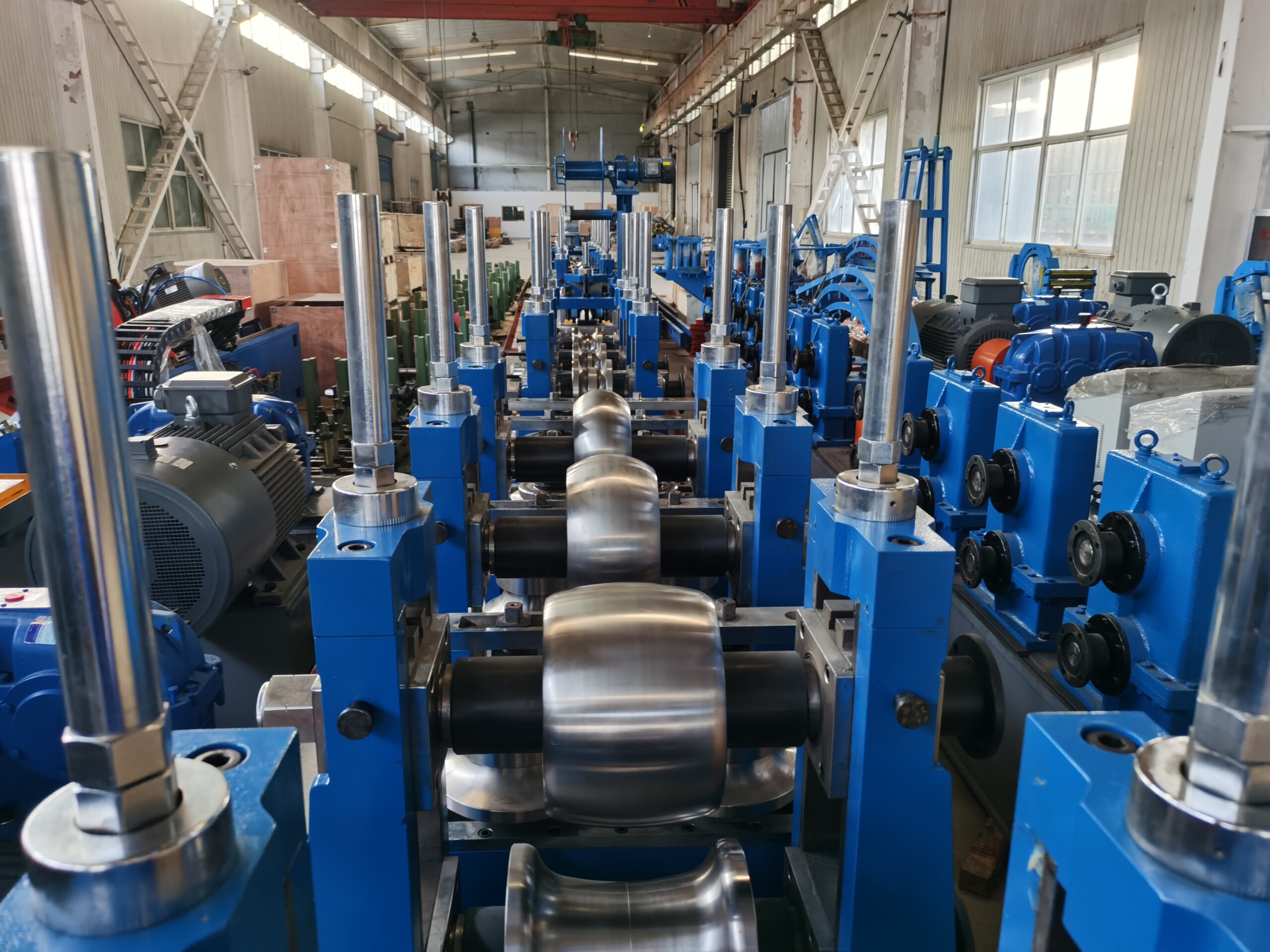

JP-114 ERW HF Tube/Pipe Mill is working for pipe diameter 50mm-114mm,pipe thickness 2.0-5.0mm.
Working flow
Coil loading ➔ Uncoiling ➔Shearing & Welding ➔ Accumulating ➔ Forming ➔ HF welding ➔ Outer de-burring ➔Seam polishing➔Water cooling ➔ Fine sizing ➔ Turk straightening ➔Cutting off ➔ Run out table➔Packaging ➔ Storing
| HF WELDING PIPE MILL SPECIFICATIONS(JOPAR) | ||||||||
| MODEL | ROUND TUBE | SQUARE & RECTANGLE TUBE | ||||||
| O.D(mm) | Thickness(mm) | 0.D(mm) | Thickness(mm) | |||||
| JP~114 | Φ50~Φ114 | 1.0~4.0 | 60X60~100×100 | 1.0~3.5 | ||||
| JP~127 | Φ25~Φ127 | 1.0~4.0 | 20×20-100×100 | 1.0~3.5 | ||||
| JP~127L | Φ48~Φ127 | 1.5~5.0 | 40×40~100×100 | 1.5~4.5 | ||||
| JP~165 | Φ60~Φ165 | 2.0~6.0 | 50×50-130×130 | 2.0-5.5 | ||||
| JP~254 | Φ114~Φ254 | 3.0~8.0 | 90×90~200×200 | 3.0~6.0 | ||||
| JP~273 | Φ114~Φ273 | 4.0~10 | 90×90-200×200 | 4.0-8.0 | ||||
| JP~325 | Φ165~Φ325 | 4.0~12 | 150×150~250×250 | 4.0~10 | ||||
| JP~426 | Φ165~Φ426 | 6.0~14 | 130×130-300×300 | 6.0~12 | ||||
| JP~508 | Φ165~Φ508 | 6.0~16 | 130×130~400×400 | 6.0~16 | ||||
| JP~630 | Φ325~Φ630 | 6.0~20 | 300×300-500×500 | 6.0~20 | ||||
