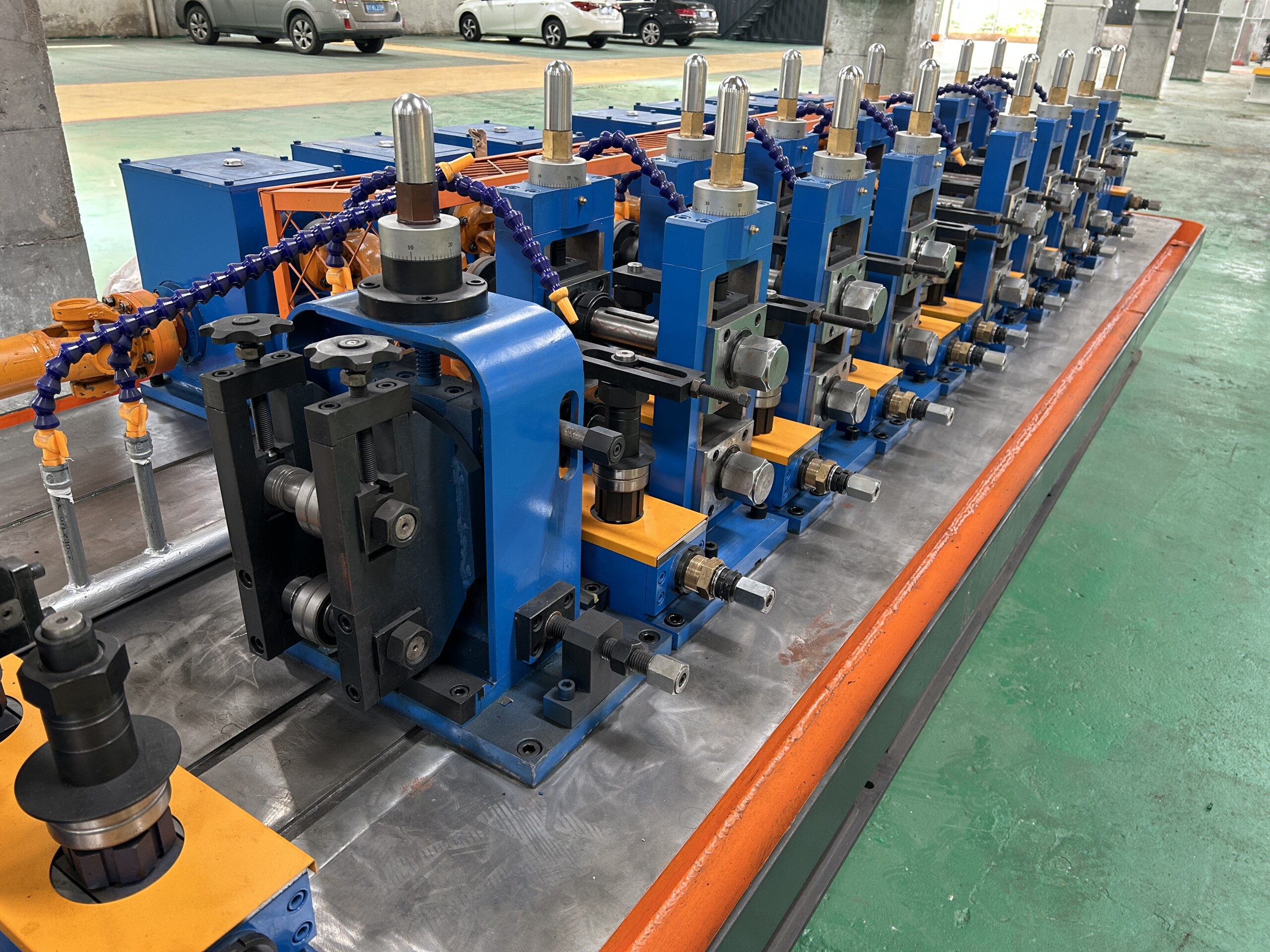

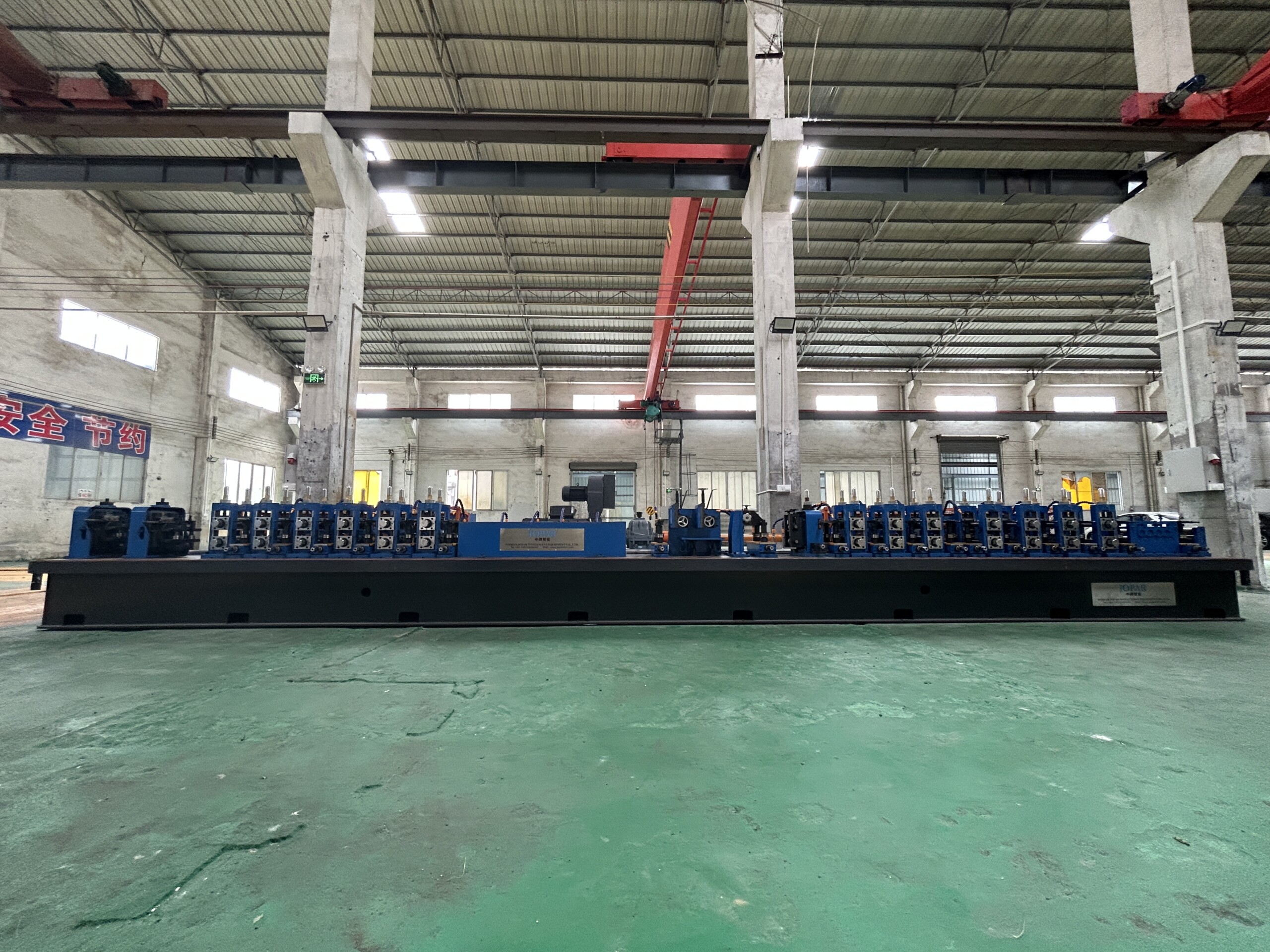

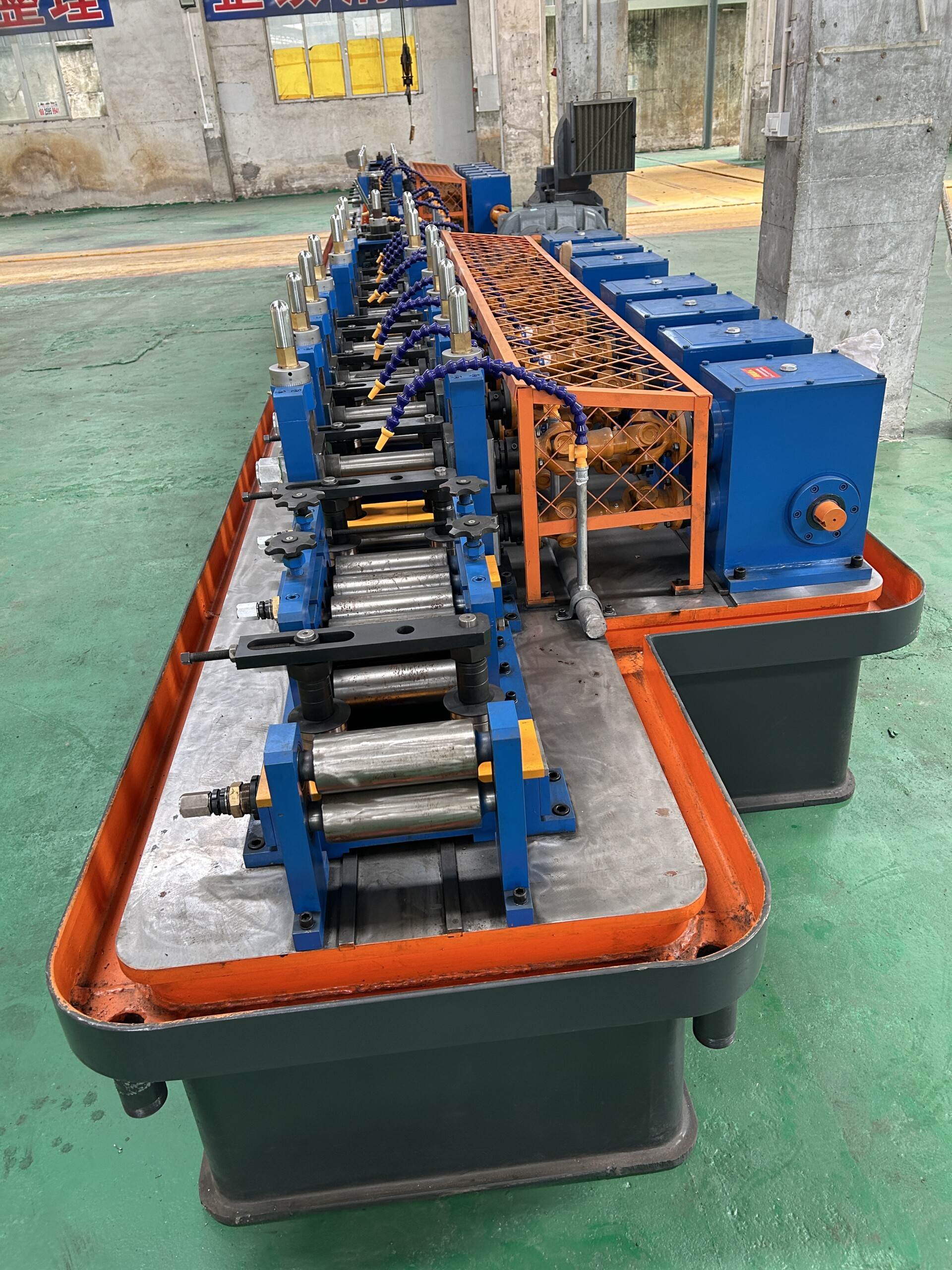

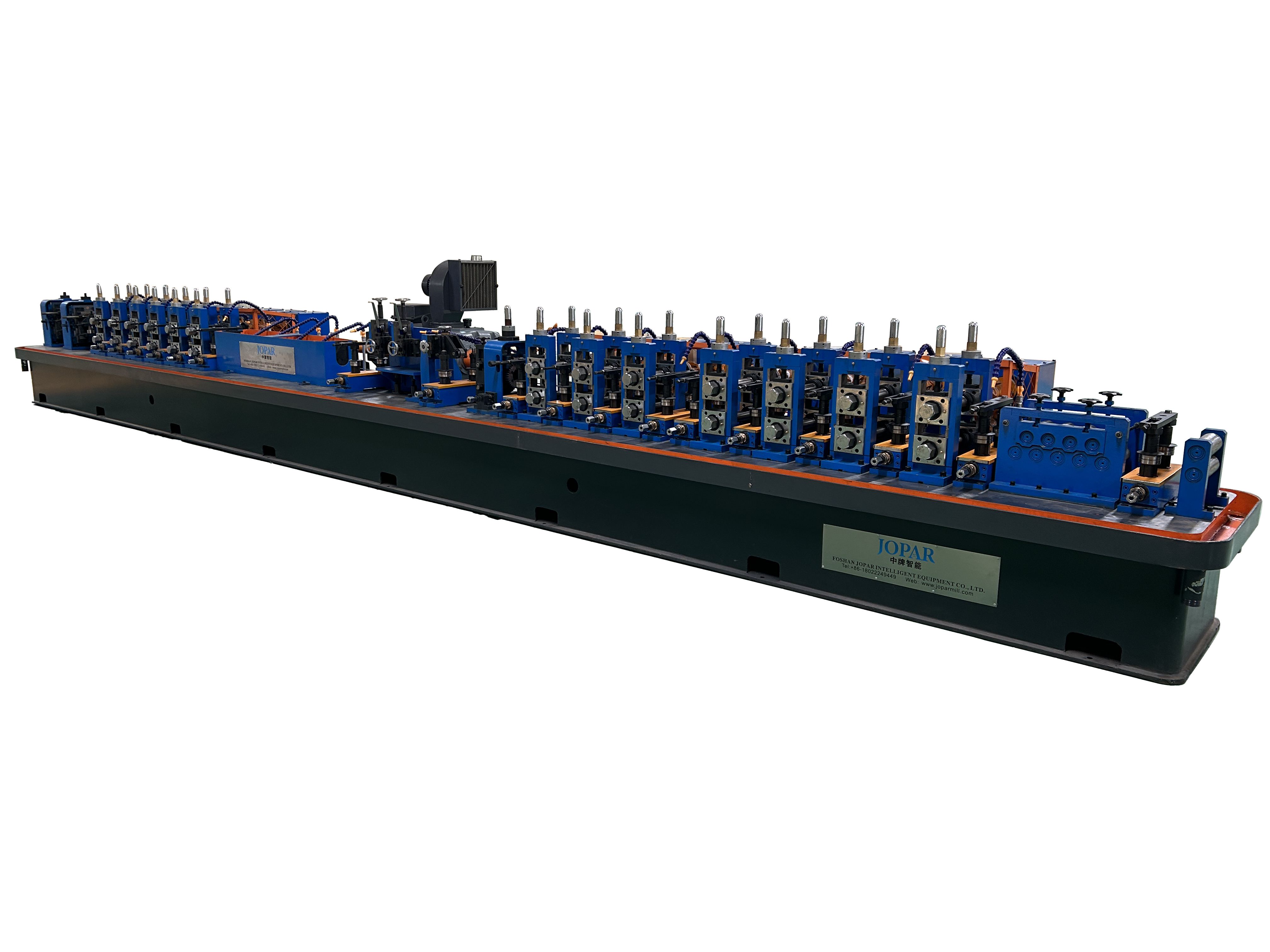

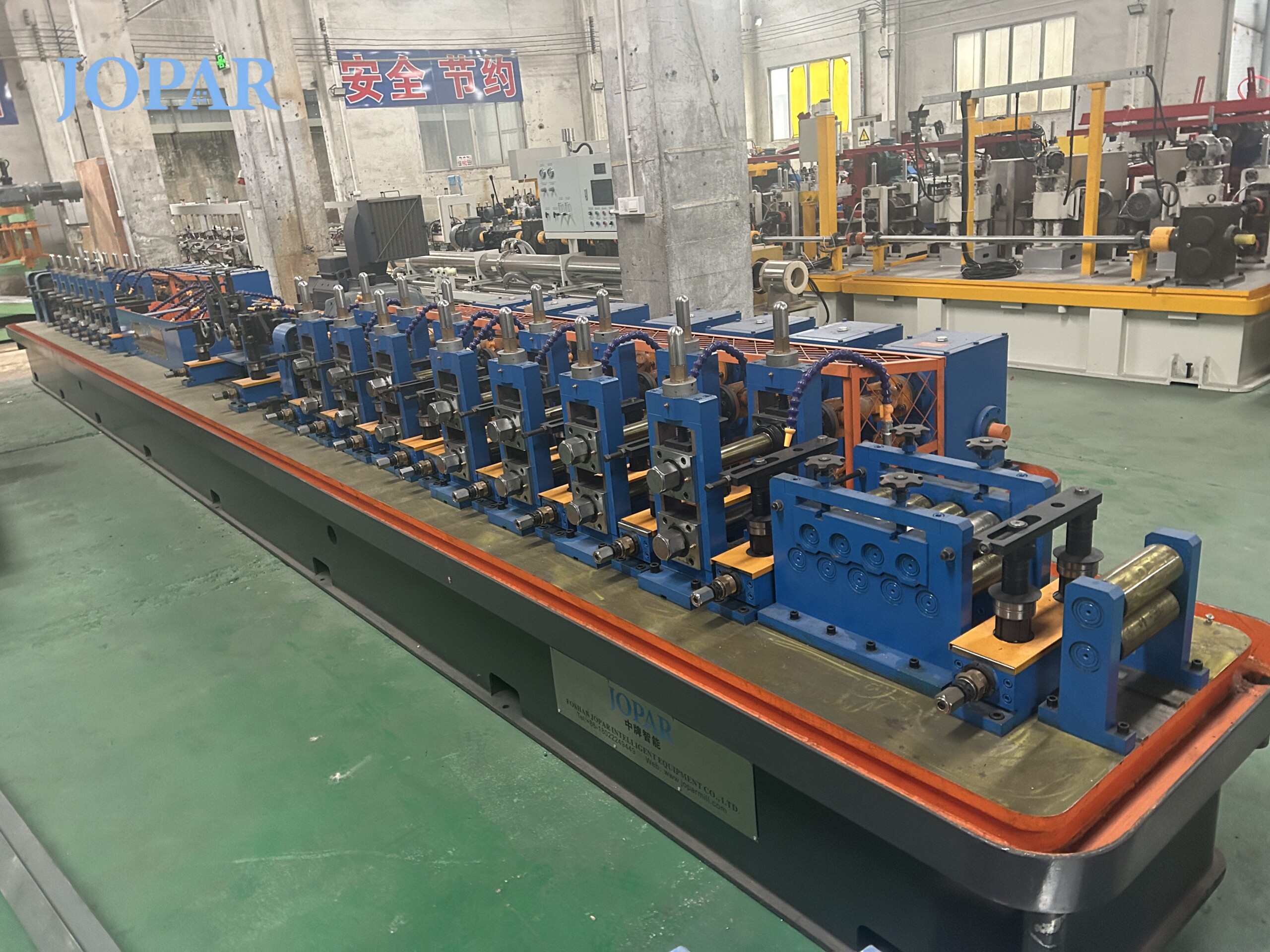

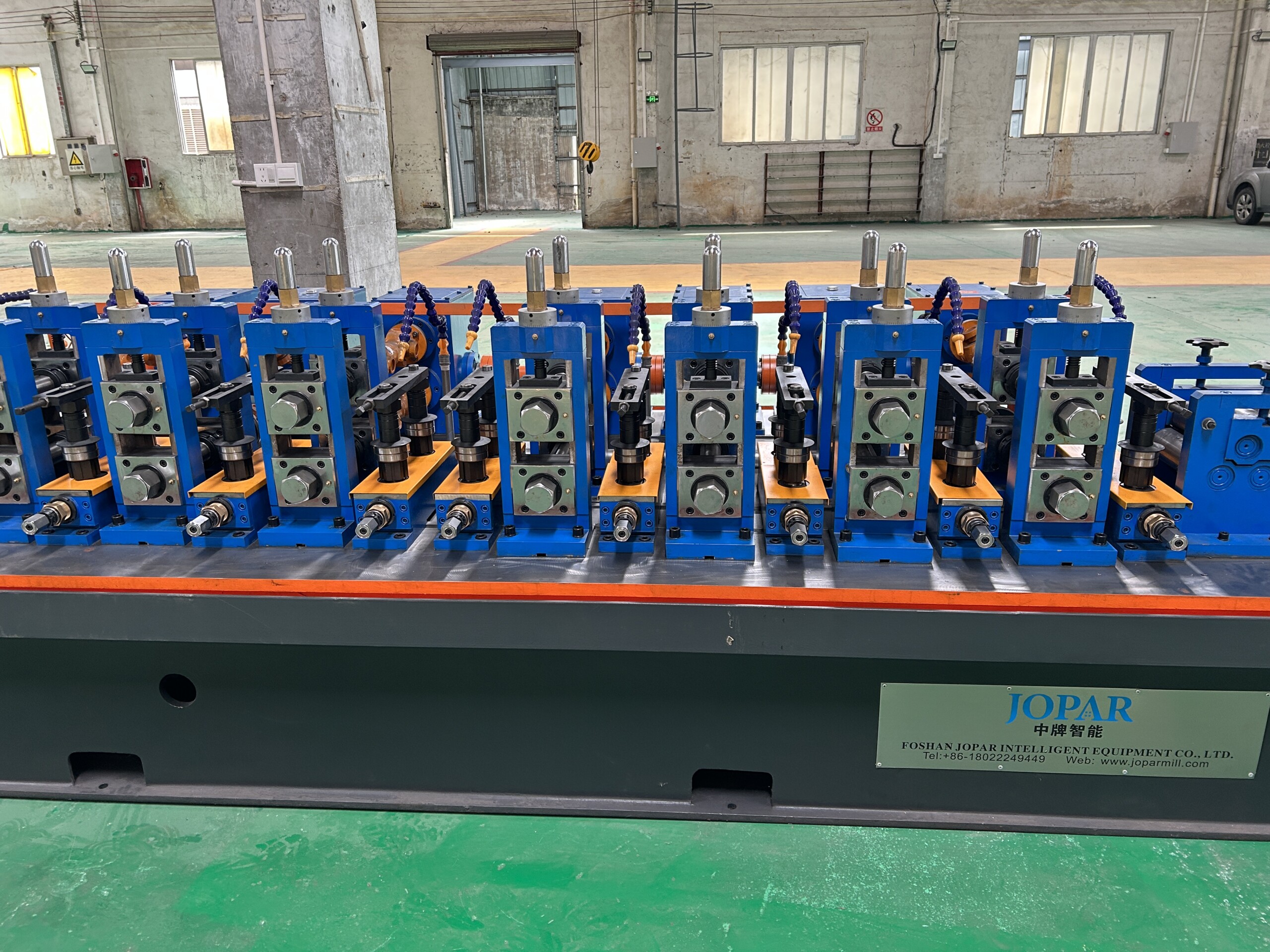

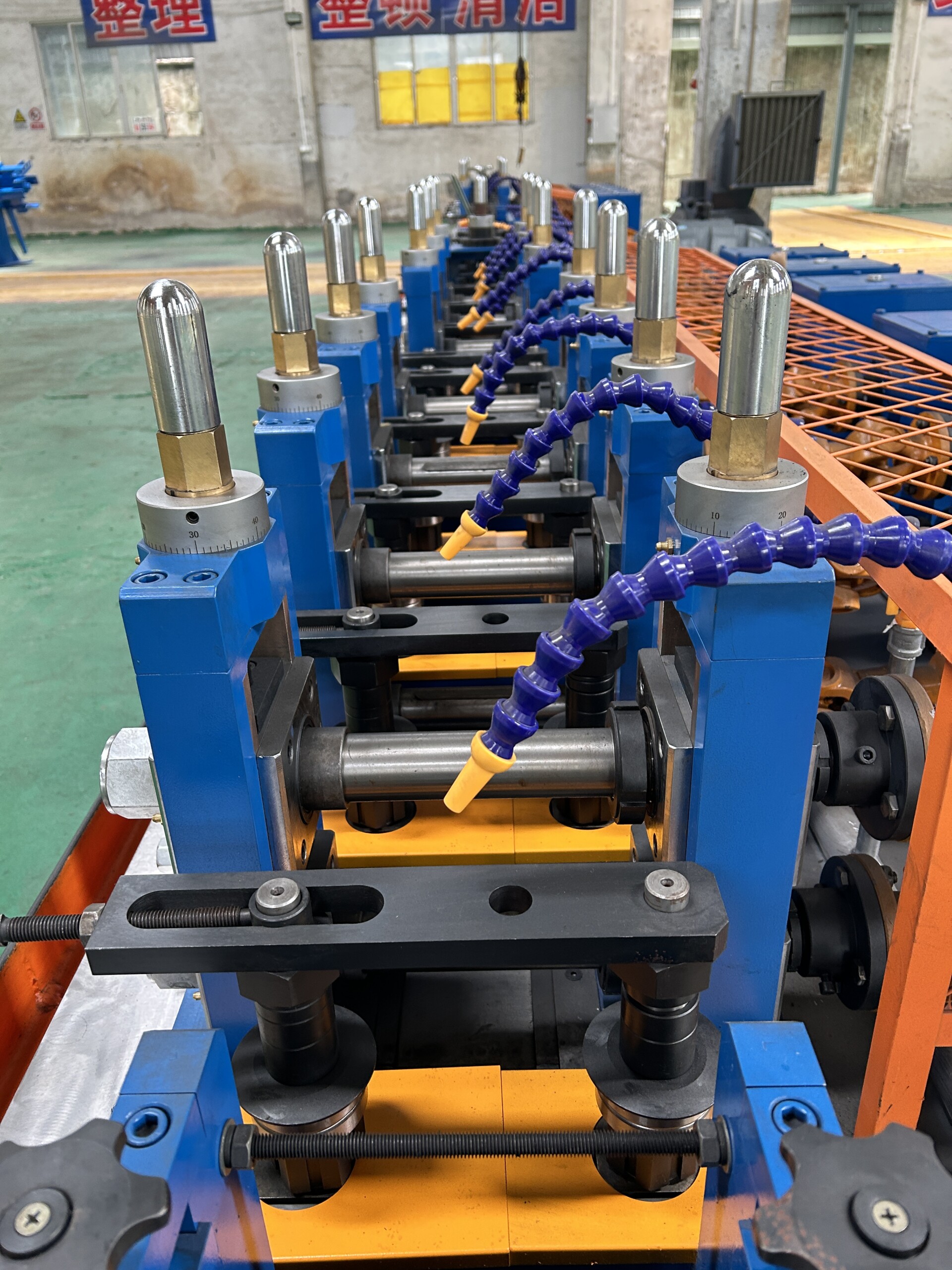

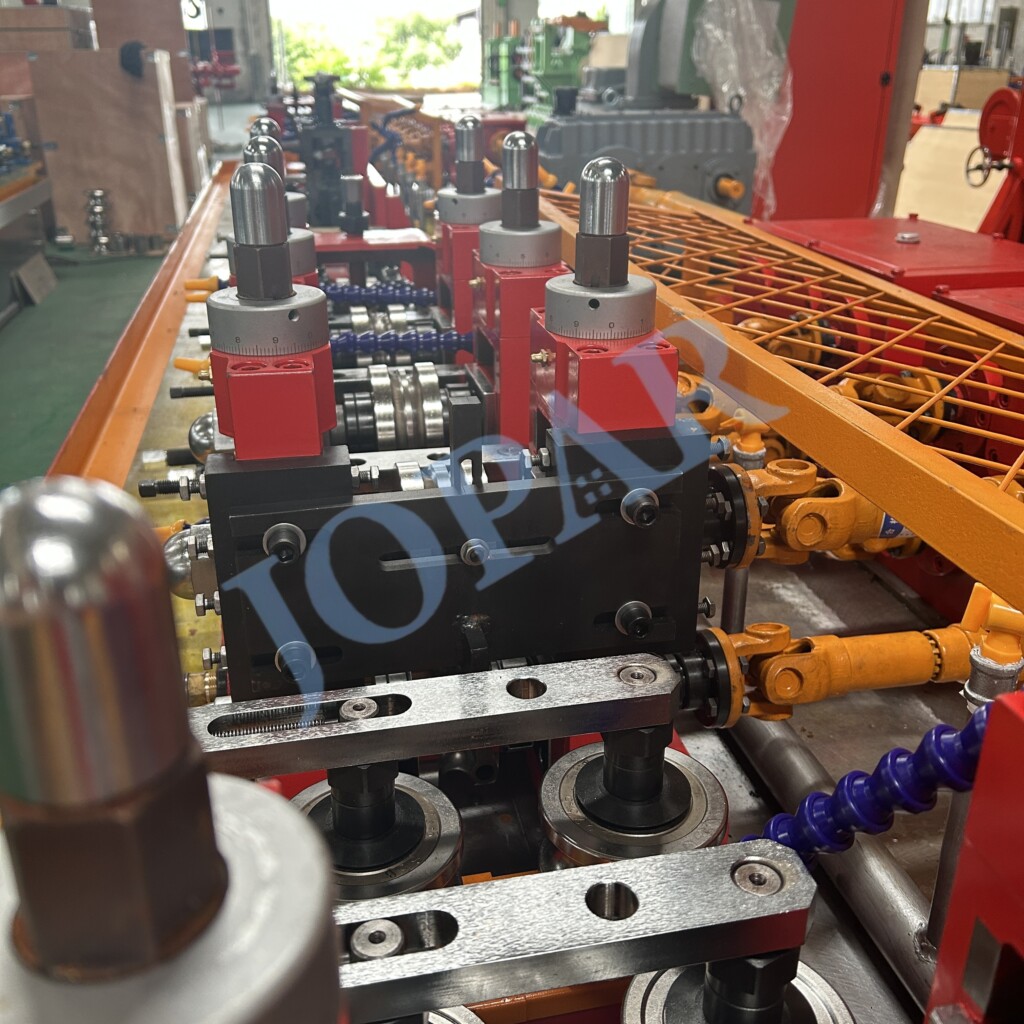

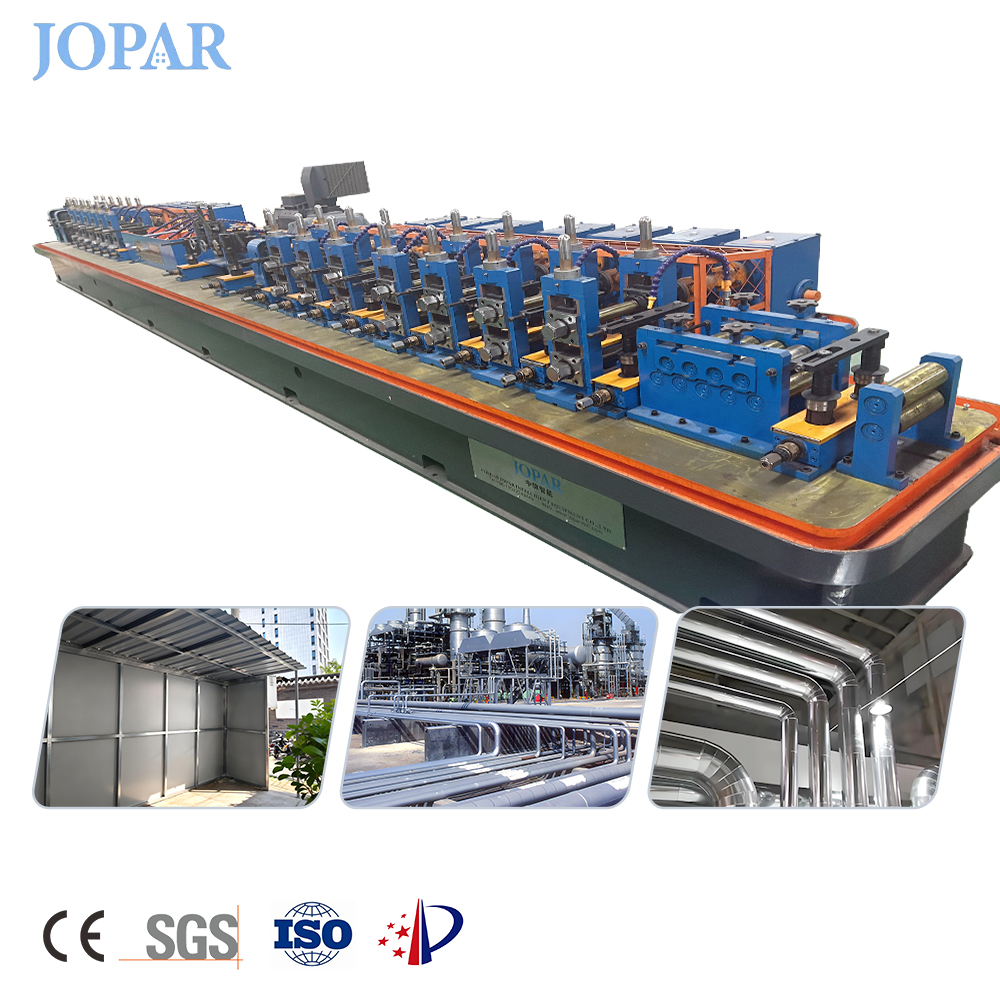

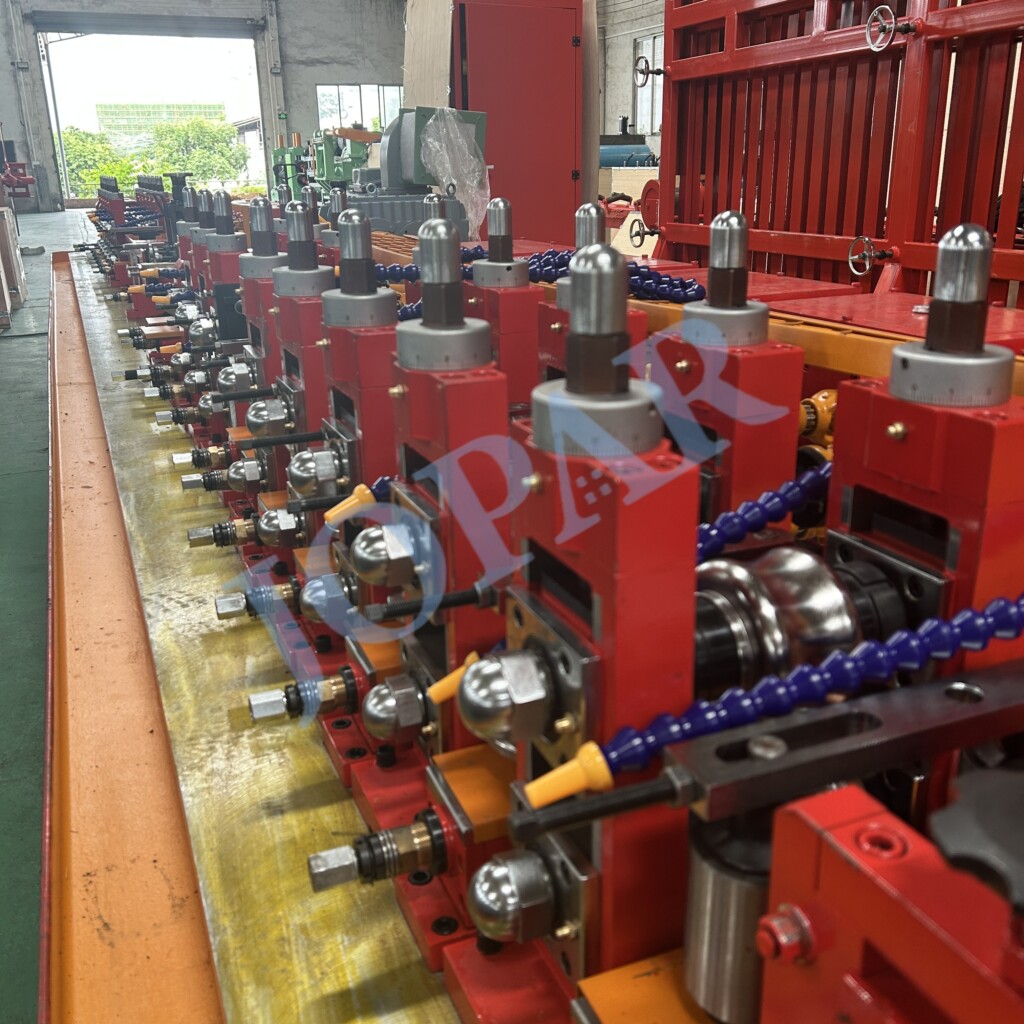

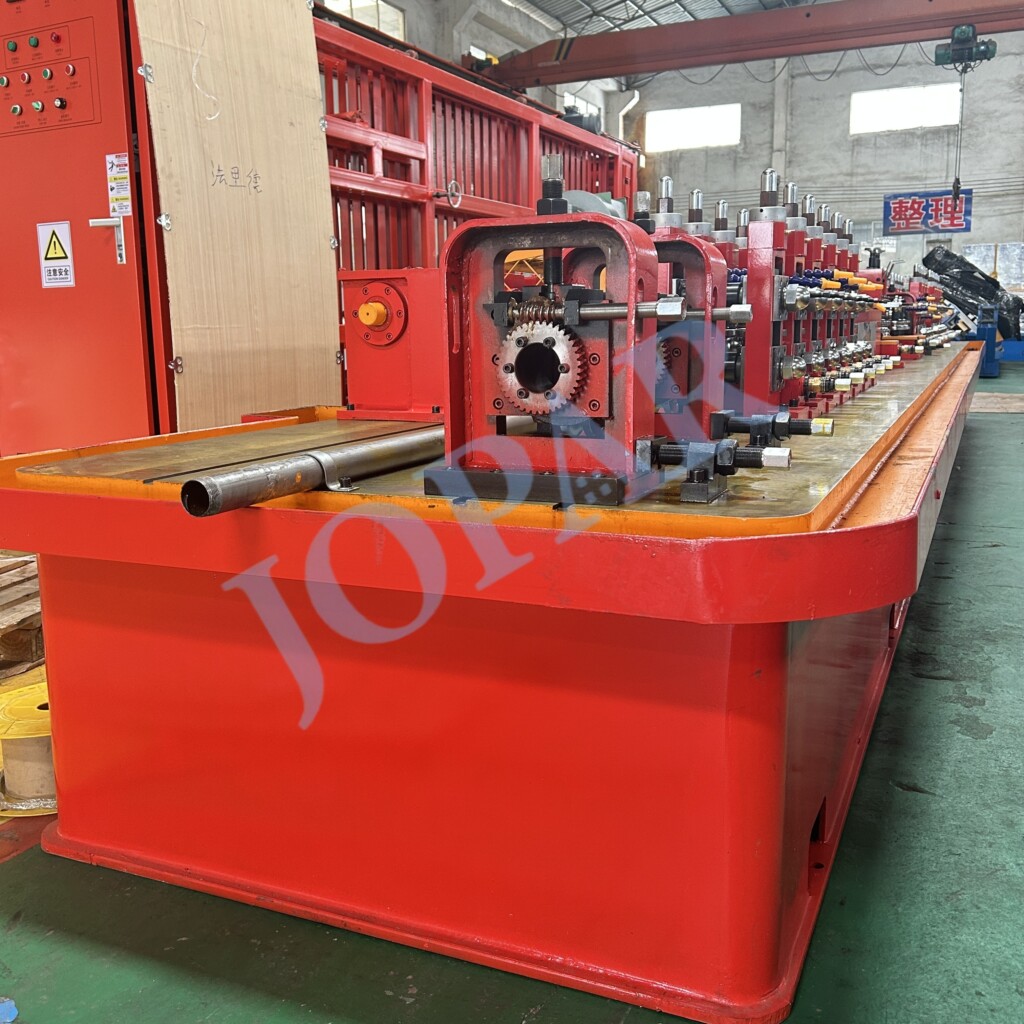

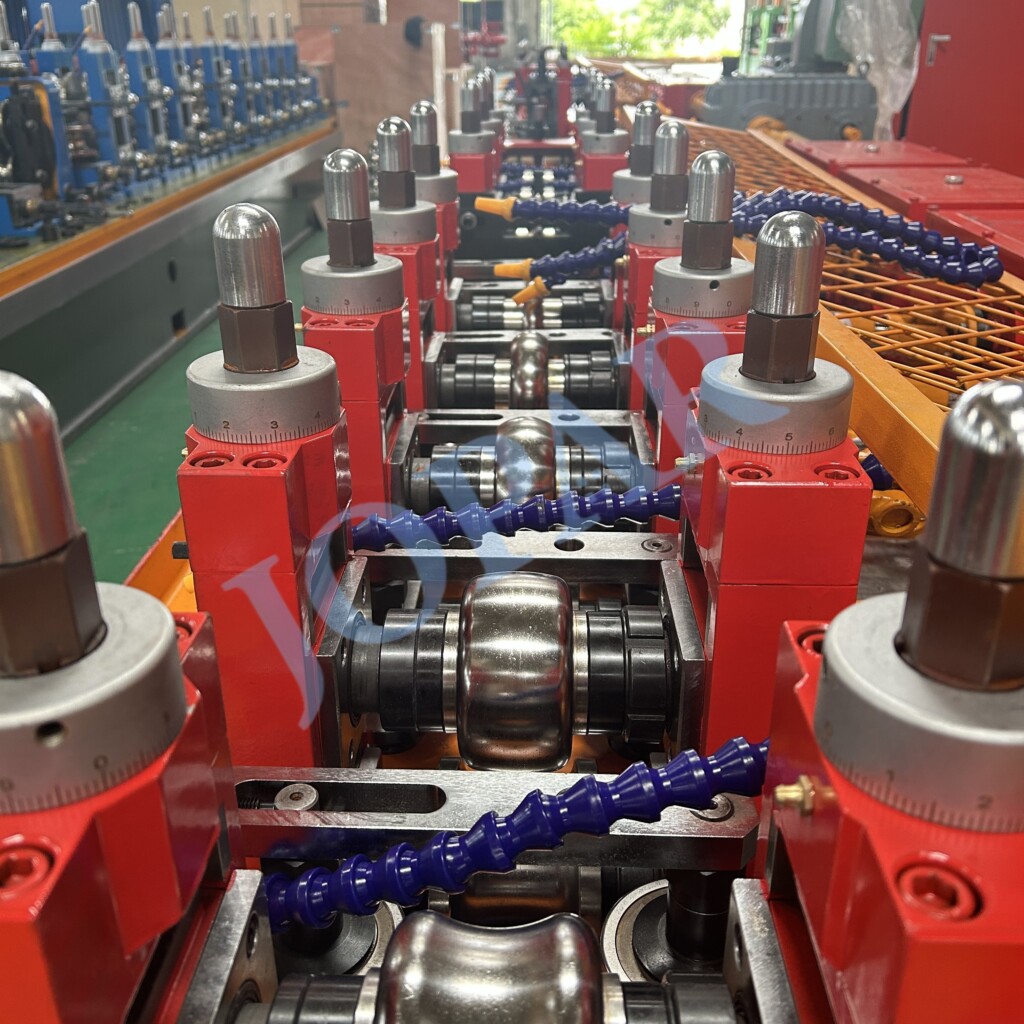

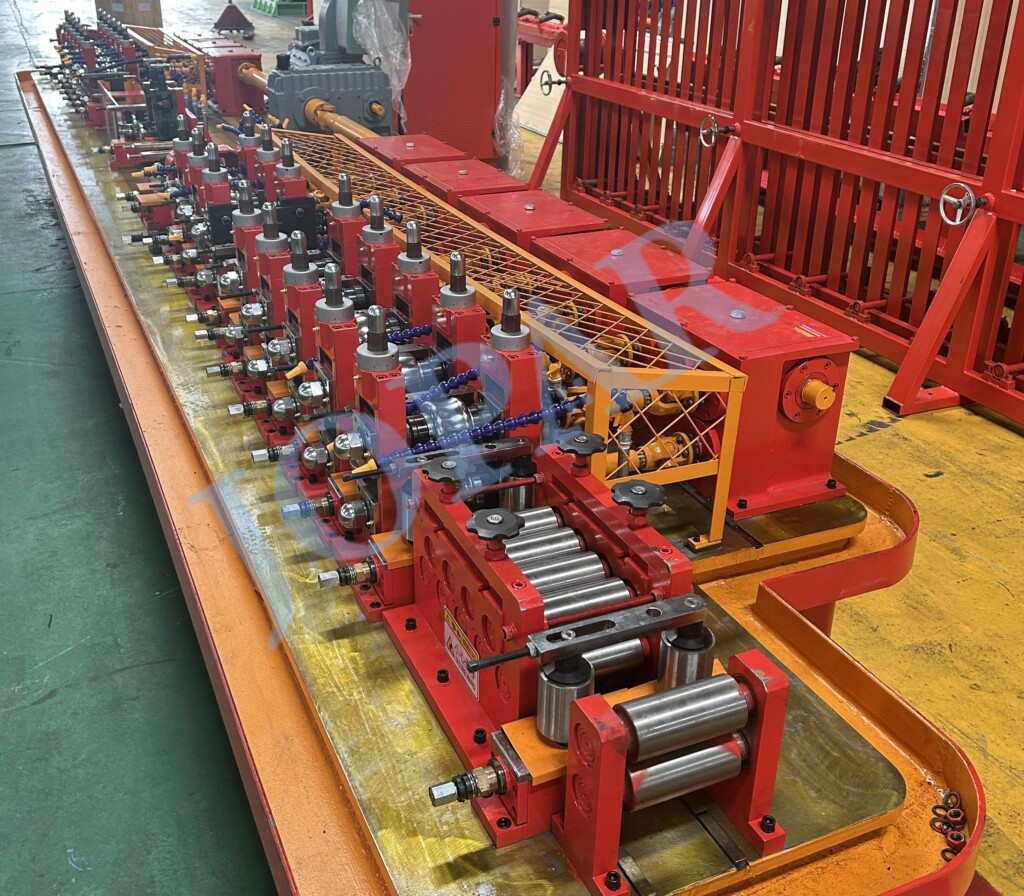

JP-32 ERW HF Tube/Pipe Mill is working for pipe diameter 10mm-32mm,pipe thickness 0.6-2.0mm.
Working flow
Coil loading ➔ Uncoiling ➔Shearing & Welding ➔ Accumulating ➔ Forming ➔ HF welding ➔ Outer de-burring ➔Seam polishing➔Water cooling ➔ Fine sizing ➔ Turk straightening ➔Cutting off ➔ Run out table➔Packaging ➔ Storing
| HF WELDING PIPE MILL SPECIFICATIONS(JOPAR) | ||||||||
| MODEL | ROUND TUBE | SQUARE & RECTANGLE TUBE | ||||||
| O.D(mm) | Thickness(mm) | 0.D(mm) | Thickness(mm) | |||||
| JP~32 | Φ8~Φ32 | 0.3~1.5 | 10×10~25×25 | 0.3~1.0 | ||||
| JP~50 | Φ20~Φ50 | 0.8~2.5 | 15×15-50×50 | 0.8~2.0 | ||||
| JP~60 | Φ12~Φ63 | 0.6~2.5 | 15×15~50×50 | 0.6~2.0 | ||||
| JP~6OL | Φ12~Φ63 | 0.6~3.0 | 15×15-50×50 | 0.6~2.5 | ||||
| JP~76 | Φ21~Φ76 | 0.8~3.5 | 15×15~60×60 | 0.8~3.0 | ||||
| JP~76L | Φ25~Φ76 | 1.0~4.0 | 20×20-60×60 | 1.0~3.5 | ||||
| JP~89 | Φ32~Φ89 | 1.5~4.5 | 25X25~70×70 | 1.5~4.0 | ||||
| JP~114 | Φ50~Φ114 | 1.0~4.0 | 60X60~100×100 | 1.0~3.5 | ||||
