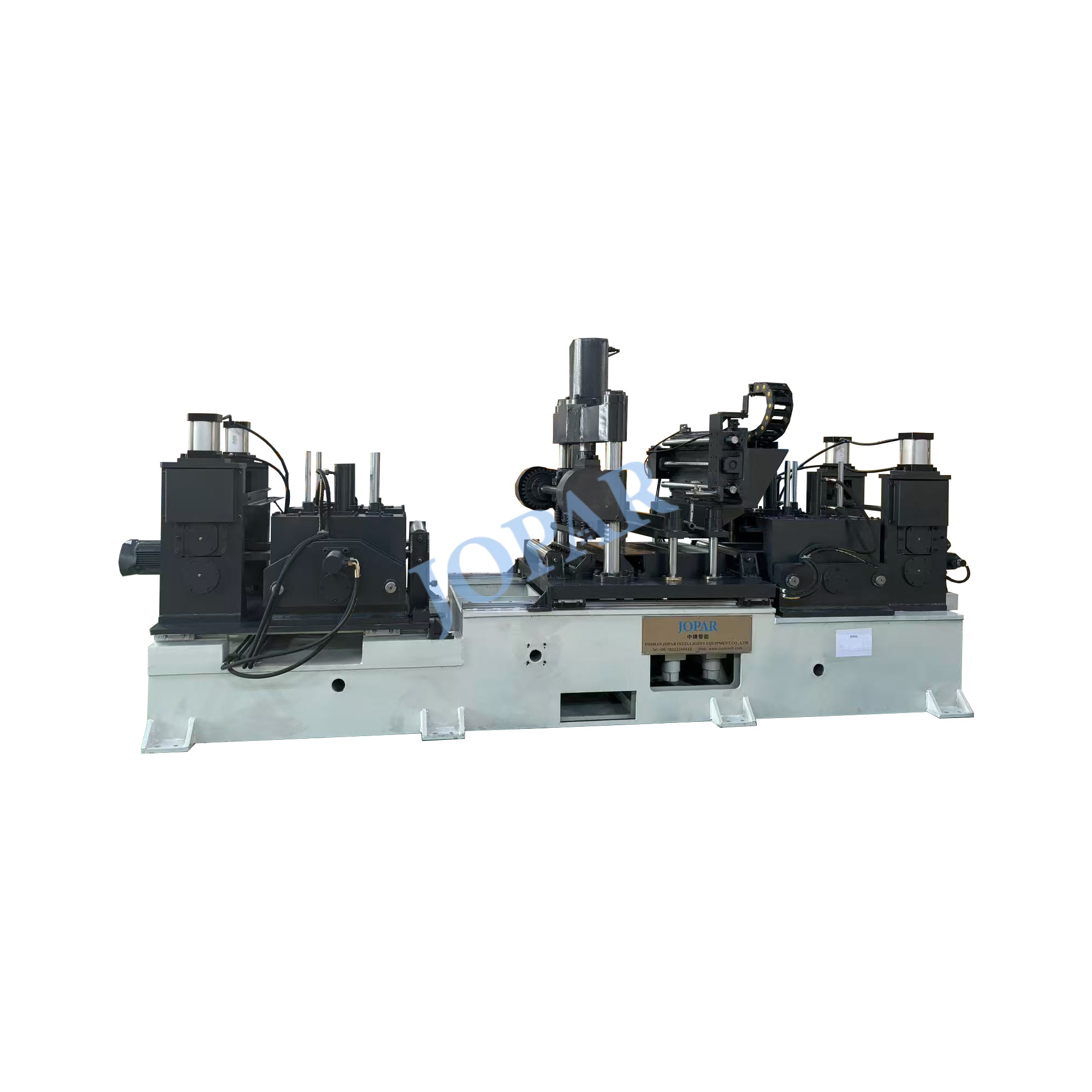

1.Strip width:160-520mm, thickness:1.0-4.5 2.The sersor switch is installed directly on the machine table. 3.Steel strip material:Stainless steel, cold rolled , hot rolled, galvanized and aluminum. 4.PLC control panel:Siemens. 5.Touchscreen:Siemens. 6.With wireless remote control. 7.With front and rear nip roll drives

Function It is used to hold, uncoil the coils. Max coil weight Max. 3 Tons for each side Type Double Mandrel Cone structure Adopting a combination of four wedge-shaped sliders, it is sturdy and stable. Cone expansion type Hydraulic expansion. Coil I.D. Ø420mm~Ø520mm Cone brake Air brake with weak and strong brake, which can prevent coil to roll […]

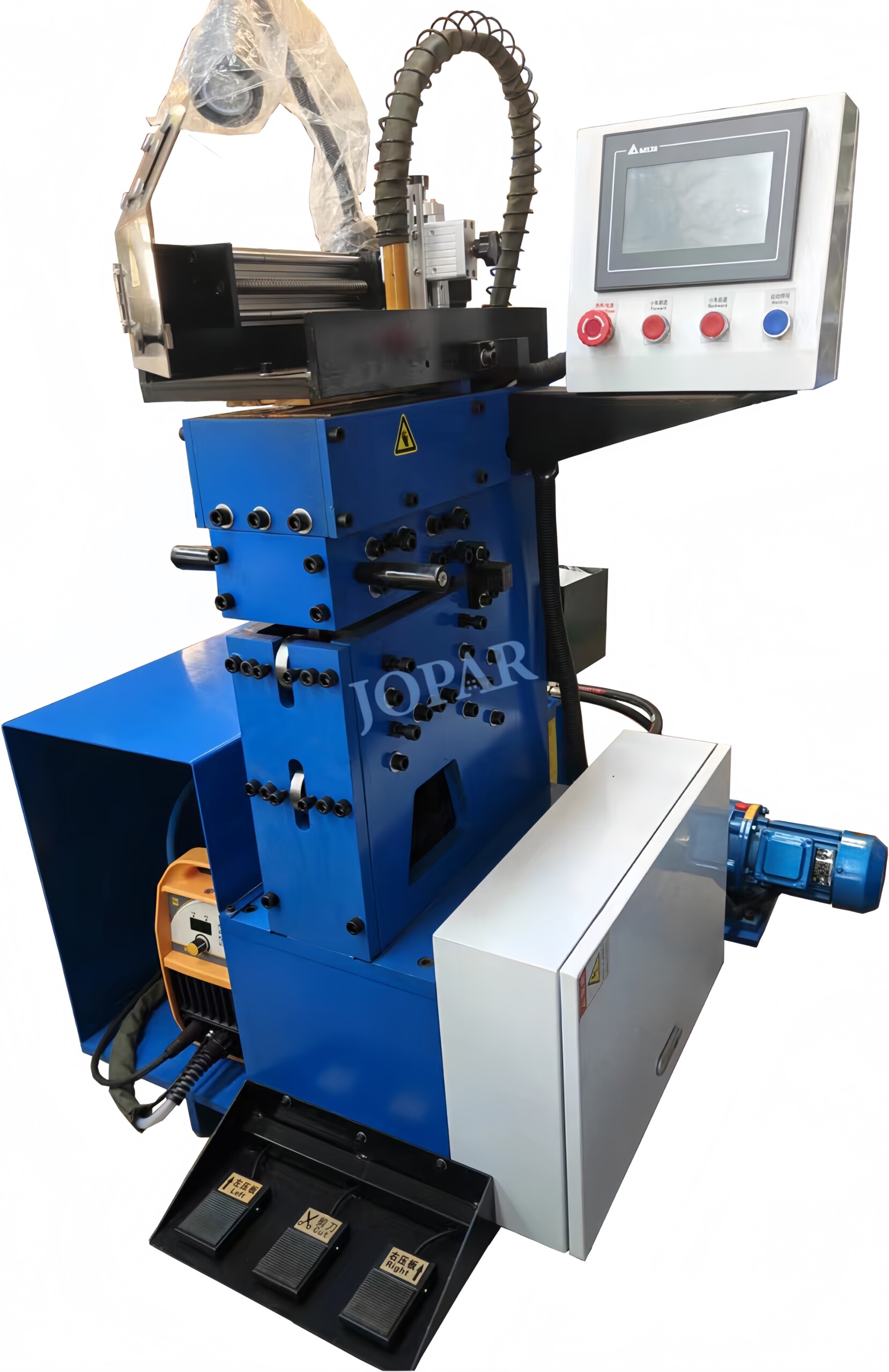

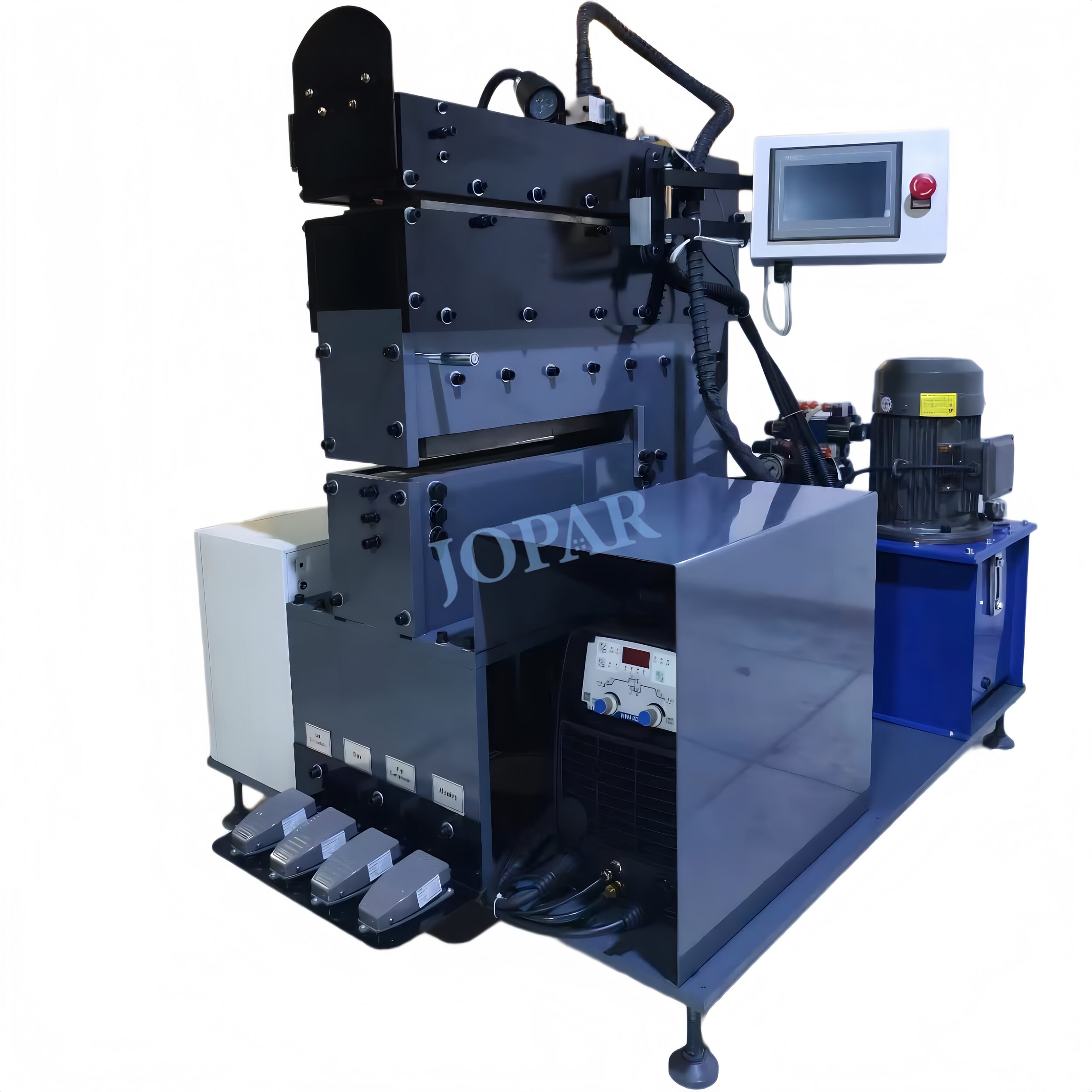

Metal shear butt welding machine adopts TIG argon arc welding, welding metal strips of different materials (such as carbon steel, stainless steel, aluminum, Titanium and copper violet, etc.). Model Strip width（mm） Welding thickness（mm) Speed（mm/min) current（A） Airpressure（MPa) Gaspressure（MPa） Dimension Copper or Aluminum Carbon steel L×W×H DJJ-160A 30-160 0.4-2.0 0.4-2.0 75-500 12-160 0.6 830×690×1580 DJJ-160B 30-160 0.5-3.0 […]

High Frequency Solid state welder is for carbon steel,stainless steel etct.
It consist of Rectifier cabinet,Modular inverter cabinet ( one air conditioner is provided),Water-water cooling device,Console,3- dimensional adjustment device.

Advantages Flying cold sawing is a new online cutting technology in H.F. welded tube industry. Compare with the friction heat saw, its most major characteristic is the cold milling principle. Type Max.Diameter mm Max.thickness mm Max.Speed mm Carriage motor Cutting motor Blade Diameter mm 32 Φ32/25 2.0 130 15KW 19KW 450 50 Φ50/40 2.5 130 15KW 20KW […]

Auto-Stacking MC Main technical parameters (general): Maximum line speed of the production line: 140m / min Maximum square pipe bundle diameter: 500 * 500mm Specification of square pipe: 25mm □ ~100mm □; rectangular pipe (20 * 40~50 * 100) mm Round tube specification: Φ 40~ Φ114mm Maximum round margin: 480mm Maximum round tube bundle diagonal […]

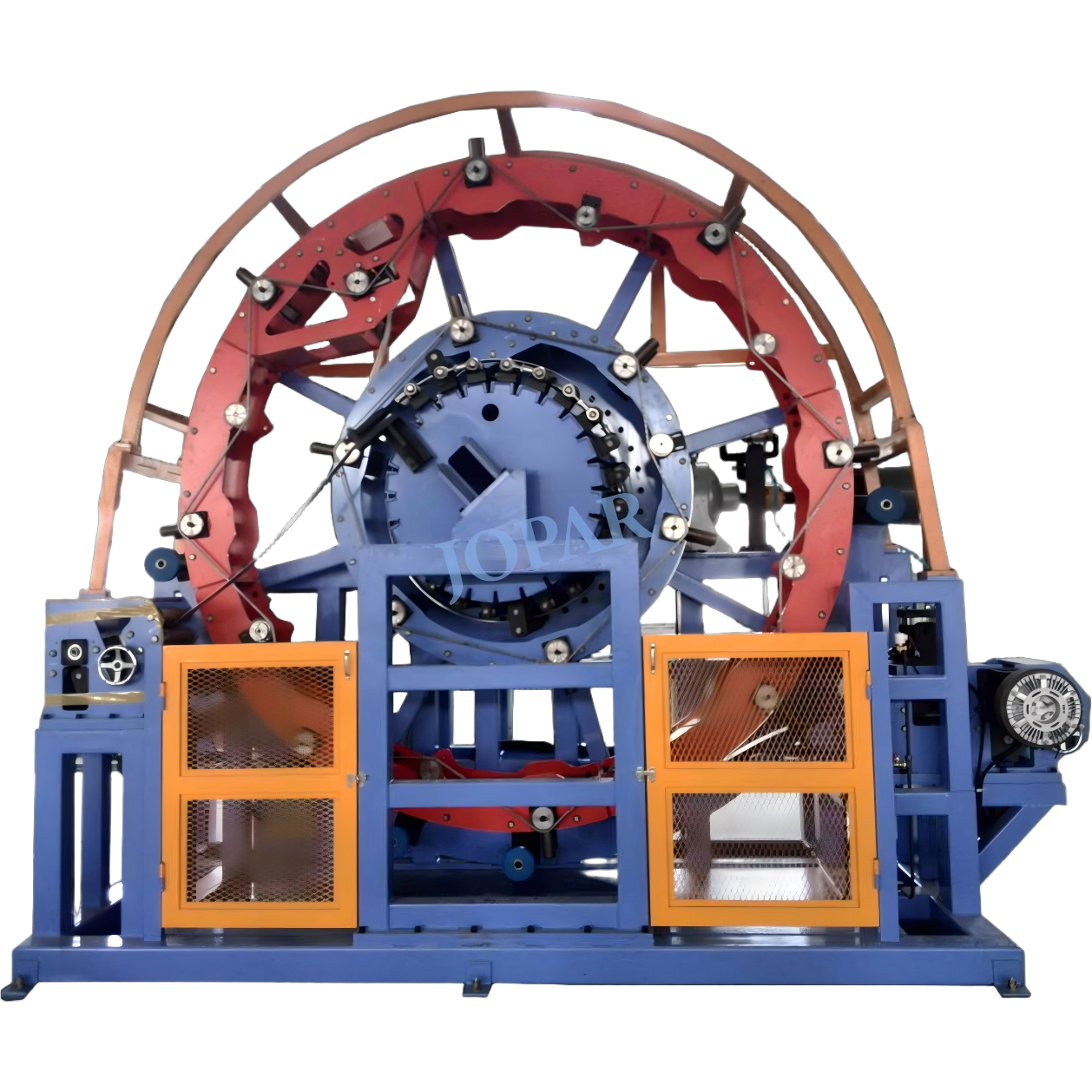

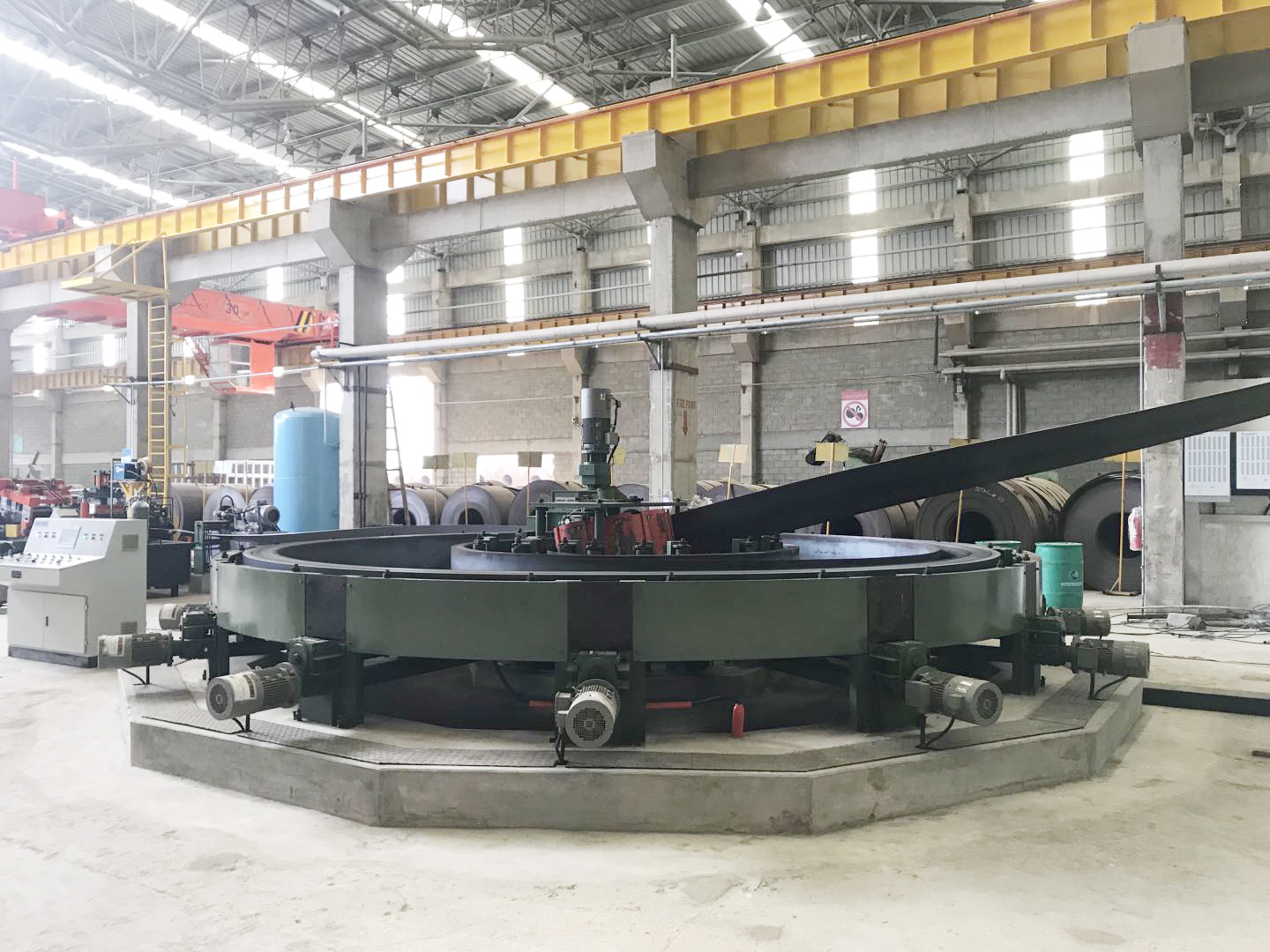

Horizontal Spiral Accumulator    Function Its main function is to store a certain amount of steel strip for supplying main machine before it doing head and end welding to make sure main machine’s continuous production without stopping. Structure Outside in and inside out type,fixed coil type. Accumulator O.D. 4、4.5、5、6M Storage capacity ≤700 m Feeding Motor […]
